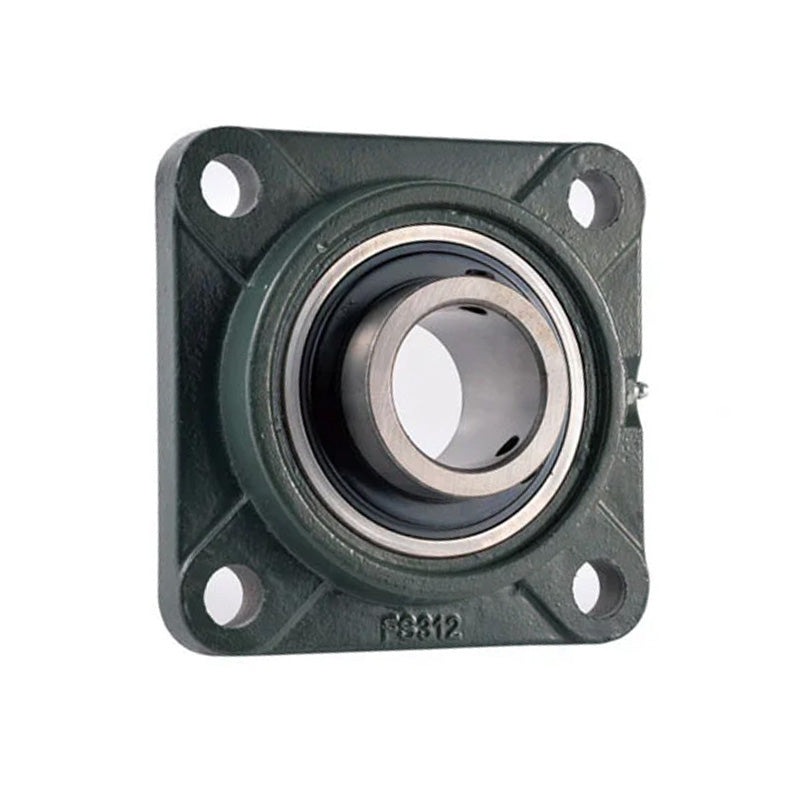

UCFS308 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert
UCFS308 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert
Regular price
CHF 92.77
ex VAT
Regular price
Sale price
CHF 92.77
ex VAT
In stock
Price Break
10+
CHF 82.57
19+
CHF 77.93
29+
CHF 77.00
39+
CHF 76.07
49+
CHF 75.14
74+
CHF 74.22
99+
CHF 69.58
199+
CHF 68.65
249+
CHF 67.72
499+
CHF 66.79
999+
CHF 64.94
Couldn't load pickup availability
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- UCFS
- Bolt Hole Centres:
- 112mm
Technical
Technical
| d | 40mm |
|---|---|
| a | 150mm |
| e | 112mm |
| i | 13mm |
| s | 19mm |
| g | 10mm |
| j | 17mm |
| l | 40mm |
| f | 115mm |
| z | 56mm |
| B | 52mm |
| n | 19mm |
| Bolt size | M16 |
| Bearing no | UC308 |
| Housing no | FS308 |
| Weight | 3 kg |
