SKU: UCFS310D1-NTN

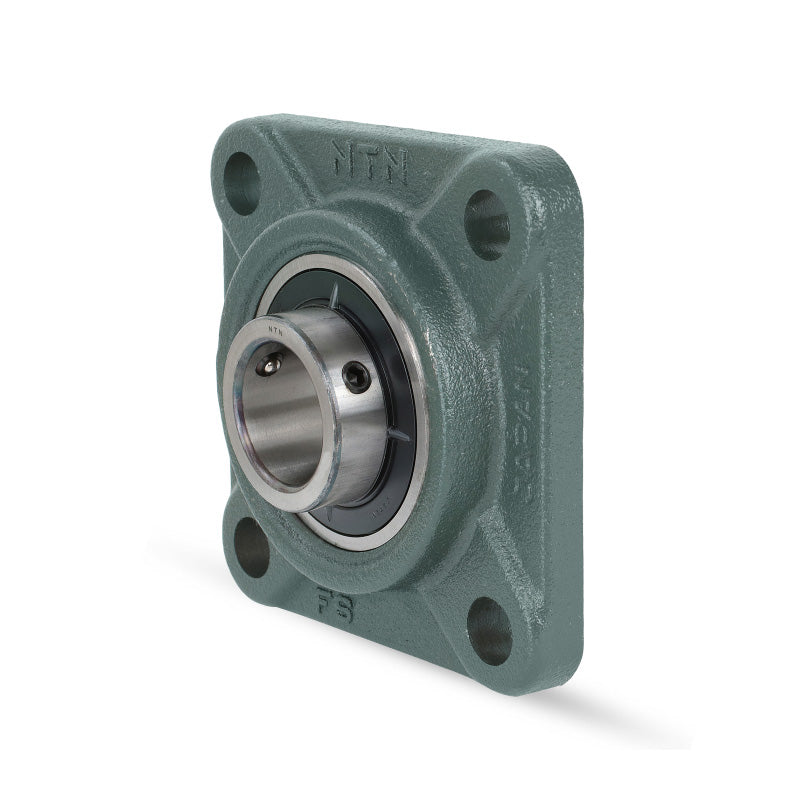

NTN UCFS310D1 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
NTN UCFS310D1 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
Regular price
CHF 94.66
ex VAT
Regular price
Sale price
CHF 94.66
ex VAT
In stock
Price Break
10+
CHF 84.25
19+
CHF 79.51
29+
CHF 78.57
39+
CHF 77.62
49+
CHF 76.67
74+
CHF 75.73
99+
CHF 71.00
199+
CHF 70.05
249+
CHF 69.10
499+
CHF 68.16
999+
CHF 66.26
Couldn't load pickup availability
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCFS
- Bolt Hole Centres:
- 132mm
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| L | 175mm |
| J | 132mm |
| A<sub>2</sub> | 16mm |
| N | 23mm |
| A<sub>3</sub> | 12mm |
| A<sub>1</sub> | 19mm |
| A | 48mm |
| H<sub>3</sub> | 140mm |
| A<sub>0</sub> | 67mm |
| B | 61mm |
| S | 22mm |
| Fixing bolt | M20 |
| Mass | 5 kg |
