SKU: UCFS311D1-NTN

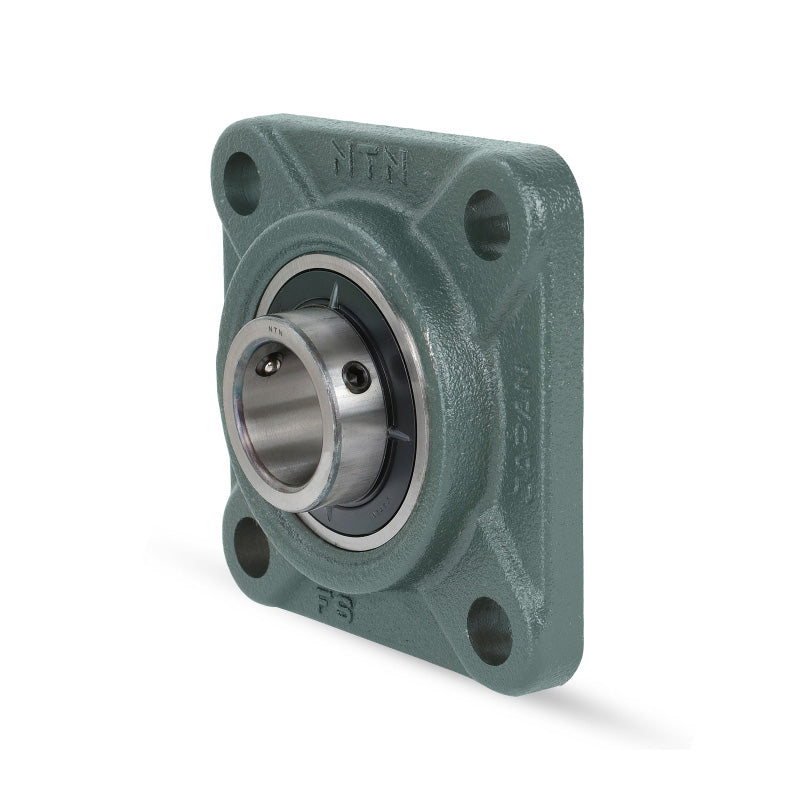

NTN UCFS311D1 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert - Allow 2-3 Days
NTN UCFS311D1 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert - Allow 2-3 Days
Regular price
CHF 115.08
ex VAT
Regular price
Sale price
CHF 115.08
ex VAT
In stock
Price Break
10+
CHF 102.42
19+
CHF 96.67
29+
CHF 95.52
39+
CHF 94.37
49+
CHF 93.21
74+
CHF 92.06
99+
CHF 86.31
199+
CHF 85.16
249+
CHF 84.01
499+
CHF 82.86
999+
CHF 80.56
Couldn't load pickup availability
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCFS
- Bolt Hole Centres:
- 140mm
Technical
Technical
| Shaft diameter | 55mm |
|---|---|
| L | 185mm |
| J | 140mm |
| A<sub>2</sub> | 17mm |
| N | 23mm |
| A<sub>3</sub> | 13mm |
| A<sub>1</sub> | 20mm |
| A | 52mm |
| H<sub>3</sub> | 150mm |
| A<sub>0</sub> | 71mm |
| B | 66mm |
| S | 25mm |
| Fixing bolt | M20 |
| Mass | 5.9 kg |
