SKU: UCFS322D1-NTN

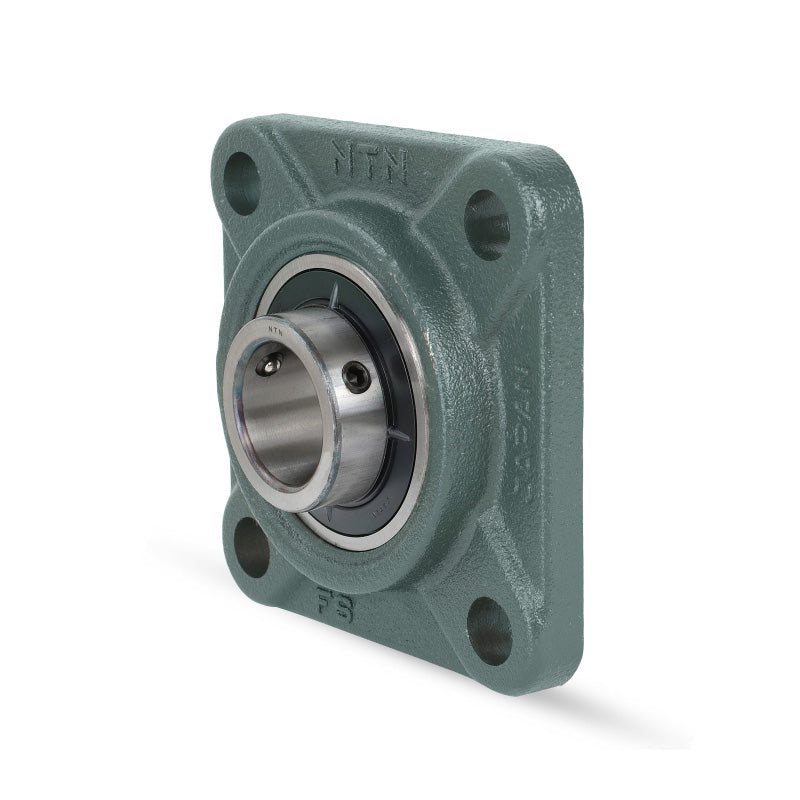

NTN UCFS322D1 Metric Four Bolt Square Cast Iron Flange Housing with 110mm Bore Insert - Allow 2-3 Days
NTN UCFS322D1 Metric Four Bolt Square Cast Iron Flange Housing with 110mm Bore Insert - Allow 2-3 Days
Regular price
CHF 592.48
ex VAT
Regular price
Sale price
CHF 592.48
ex VAT
In stock
Price Break
10+
CHF 527.31
19+
CHF 497.68
29+
CHF 491.76
39+
CHF 485.83
49+
CHF 479.91
74+
CHF 473.98
99+
CHF 444.36
199+
CHF 438.44
249+
CHF 432.51
499+
CHF 426.59
999+
CHF 414.74
Couldn't load pickup availability
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 110mm
- Style:
- UCFS
- Bolt Hole Centres:
- 266mm
Technical
Technical
| Shaft diameter | 110mm |
|---|---|
| L | 340mm |
| J | 266mm |
| A<sub>2</sub> | 35mm |
| N | 41mm |
| A<sub>3</sub> | 25mm |
| A<sub>1</sub> | 35mm |
| A | 96mm |
| H<sub>3</sub> | 300mm |
| A<sub>0</sub> | 131mm |
| B | 117mm |
| S | 46mm |
| Fixing bolt | M36 |
| Mass | 38 kg |
