SKU: UCFS326D1-NTN

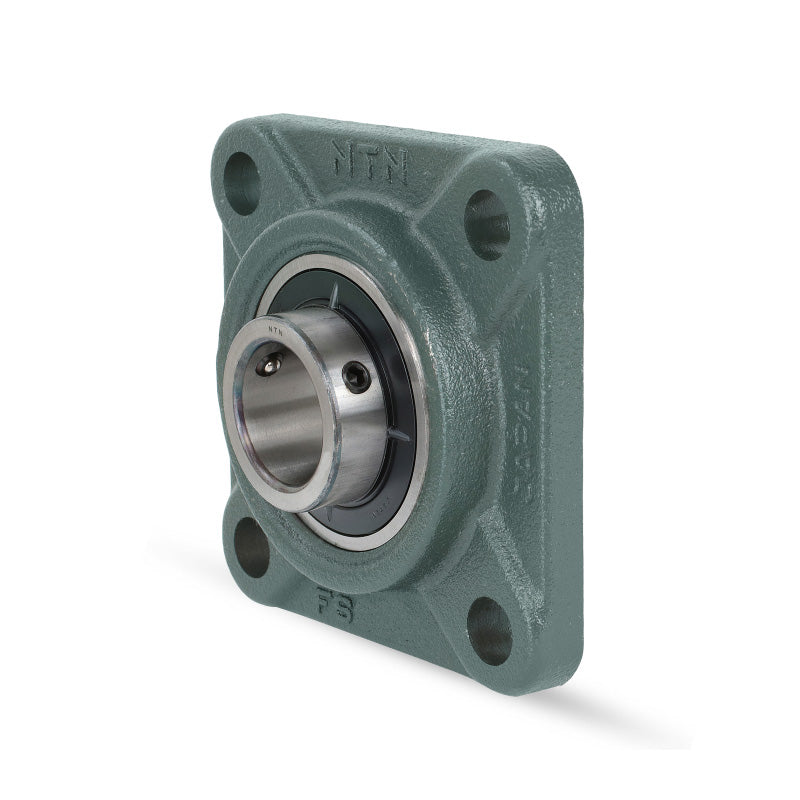

NTN UCFS326D1 Metric Four Bolt Square Cast Iron Flange Housing with 130mm Bore Insert - Allow 2-3 Days
NTN UCFS326D1 Metric Four Bolt Square Cast Iron Flange Housing with 130mm Bore Insert - Allow 2-3 Days
Regular price
CHF 1,077.55
ex VAT
Regular price
Sale price
CHF 1,077.55
ex VAT
In stock
Price Break
10+
CHF 959.02
19+
CHF 905.14
29+
CHF 894.37
39+
CHF 883.59
49+
CHF 872.82
74+
CHF 862.04
99+
CHF 808.16
199+
CHF 797.39
249+
CHF 786.61
499+
CHF 775.84
999+
CHF 754.29
Couldn't load pickup availability
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 130mm
- Style:
- UCFS
- Bolt Hole Centres:
- 320mm
Technical
Technical
| Shaft diameter | 130mm |
|---|---|
| L | 410mm |
| J | 320mm |
| A<sub>2</sub> | 35mm |
| N | 41mm |
| A<sub>3</sub> | 30mm |
| A<sub>1</sub> | 45mm |
| A | 115mm |
| H<sub>3</sub> | 360mm |
| A<sub>0</sub> | 146mm |
| B | 135mm |
| S | 54mm |
| Fixing bolt | M36 |
| Mass | 69 kg |
