SKU: UCFS328-SNR

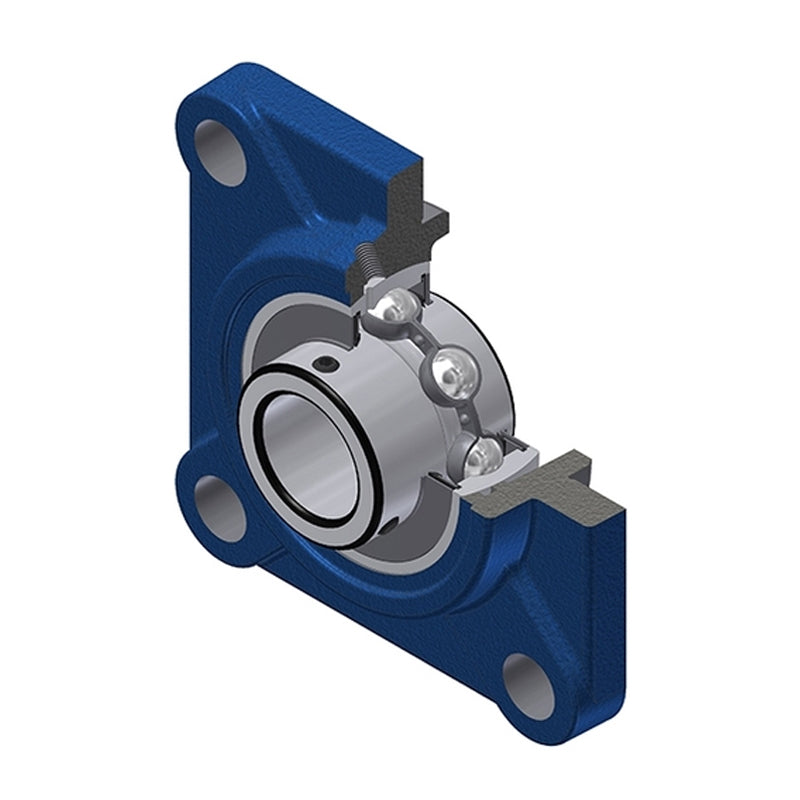

SNR UCFS328 Metric Four Bolt Square Cast Iron Flange Housing with 145mm Bore Insert - Allow 2-3 Days
SNR UCFS328 Metric Four Bolt Square Cast Iron Flange Housing with 145mm Bore Insert - Allow 2-3 Days
Regular price
CHF 1,258.08
ex VAT
Regular price
Sale price
CHF 1,258.08
ex VAT
In stock
Price Break
10+
CHF 1,119.69
19+
CHF 1,056.79
29+
CHF 1,044.21
39+
CHF 1,031.63
49+
CHF 1,019.04
74+
CHF 1,006.46
99+
CHF 943.56
199+
CHF 930.98
249+
CHF 918.40
499+
CHF 905.82
999+
CHF 880.66
Couldn't load pickup availability
Description
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 145mm
- Style:
- UCFS
- Bolt Hole Centres:
- 350mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 145mm |
| A | 125mm |
| A1 | 55mm |
| A2 | 131mm |
| A4 | 95mm |
| B | 145mm |
| e | 45mm |
| H3 | 400mm |
| J | 350mm |
| L | 450mm |
| N | 41mm |
| S | 59mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 275 kN |
| Static load C0 | 272 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 120 Nm |
| Mass | 92.7 kg |
