SKU: UCFX.05

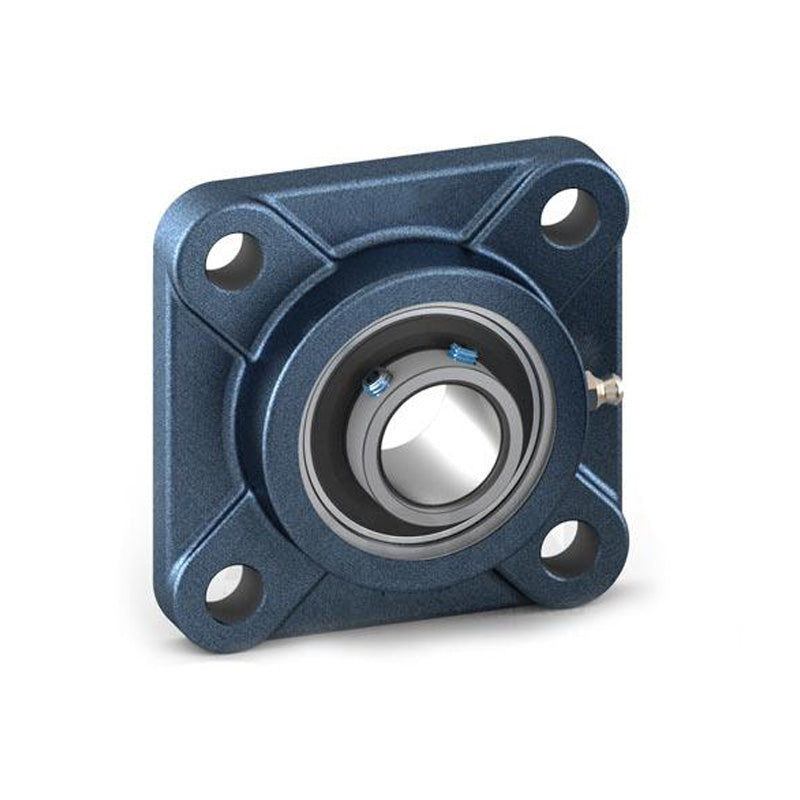

UCFX05 Metric Four Bolt Cast Iron Square Housing with 25mm Bore Insert
UCFX05 Metric Four Bolt Cast Iron Square Housing with 25mm Bore Insert
Regular price
CHF 18.00
ex VAT
Regular price
Sale price
CHF 18.00
ex VAT
Equivalent to: MSF25
In stock
Price Break
3+
CHF 14.26
4+
CHF 13.46
9+
CHF 13.30
19+
CHF 13.14
49+
CHF 12.98
99+
CHF 12.82
499+
CHF 12.02
999+
CHF 11.86
1999+
CHF 11.70
2999+
CHF 11.54
4999+
CHF 11.22
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSF25
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Style:
- UCFX
- Bolt Hole Centres:
- 83mm
Technical
Technical
| d | 25mm |
|---|---|
| a | 108mm |
| e | 83mm |
| i | 18mm |
| g | 13mm |
| L | 30mm |
| s | 12mm |
| Z | 40.2mm |
| Bi | 38.1mm |
| n | 15.9mm |
| Bolt Size | M10 |
| Weight | 1.035 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Rec max speed | 5300 rpm |
