SKU: UCFX.05-16.TS.CHAL

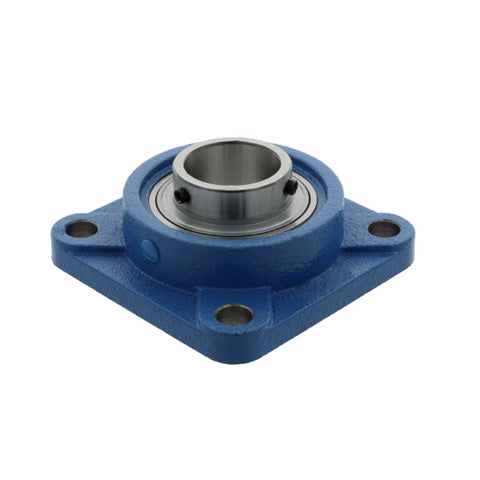

Challenge / FK UCFX05-16 Imperial Cast Iron Four Bolt Square Flange Housing with 1 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Equivalent to: UCFX.05-16
In stock
Price Break
Couldn't load pickup availability
Description
UCFX Cast Iron Four Bolt Square Flange Housing: These medium-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCFX.05-16
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- UCFX
- Bolt Hole Centres:
- 83mm
Technical
| Shaft Diameter d | 1 inch |
|---|---|
| Width a | 108mm |
| Recommended Bolt Centres L | 83mm |
| Back of Casting to Centre Line of Bearing i | 18mm |
| Depth of Casting at Bolt g | 13mm |
| Overall Casting Height l | 30mm |
| Bolt Hole Diameter s | 12mm |
| Back of Casting to Bearing Front z | 40.2mm |
| Bearing Insert Width Bi | 38.1mm |
| Back of Bearing to Centre Line n | 15.9mm |
| Bolt Size | 3/8 inch |
| Grub Screws x 2 | 1/4 - 28UNF inch |
| Load Rating (Dynamic) | 1520kg |
| Load Rating (Static) | 1020kg |
| Max Speed | 3400 rev/min |
| Working Temperature | -30°C to +120°C |
| Insert No | UCX05-16 |
| Housing No | FX05 |
