SKU: UCFX.07

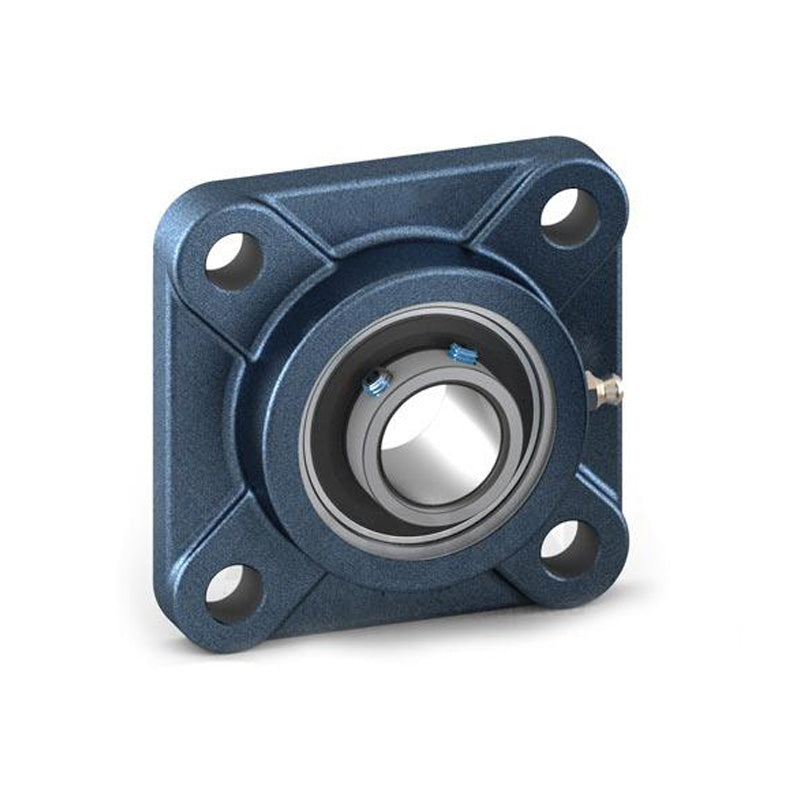

UCFX07 Metric Four Bolt Cast Iron Square Housing with 35mm Bore Insert
UCFX07 Metric Four Bolt Cast Iron Square Housing with 35mm Bore Insert
Regular price
CHF 27.18
ex VAT
Regular price
Sale price
CHF 27.18
ex VAT
Equivalent to: MSF35
In stock
Price Break
10+
CHF 24.19
19+
CHF 22.83
29+
CHF 22.56
39+
CHF 22.29
49+
CHF 22.02
74+
CHF 21.74
99+
CHF 20.39
199+
CHF 20.11
249+
CHF 19.84
499+
CHF 19.57
999+
CHF 19.03
Couldn't load pickup availability
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSF35
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UCFX
- Bolt Hole Centres:
- 102mm
Technical
Technical
| d | 35mm |
|---|---|
| a | 130mm |
| e | 102mm |
| i | 21mm |
| g | 14mm |
| L | 38mm |
| s | 16mm |
| Z | 51.2mm |
| Bi | 49.2mm |
| n | 19mm |
| Bolt Size | M14 |
| Weight | 1.9 kg |
| Dynamic load | 25560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 4000 rpm |
