SKU: UCFX.07-23
UCFX07-23 Imperial Four Bolt Cast Iron Square Housing with 1-7/16 inch Bore Insert
UCFX07-23 Imperial Four Bolt Cast Iron Square Housing with 1-7/16 inch Bore Insert
Regular price
CHF 14.00
ex VAT
Regular price
Sale price
CHF 14.00
ex VAT
Equivalent to: MSF1-716
In stock
Price Break
3+
CHF 11.09
4+
CHF 10.47
9+
CHF 10.34
19+
CHF 10.22
49+
CHF 10.09
99+
CHF 9.97
499+
CHF 9.35
999+
CHF 9.22
1999+
CHF 9.10
2999+
CHF 8.97
4999+
CHF 8.72
Description
Description
|

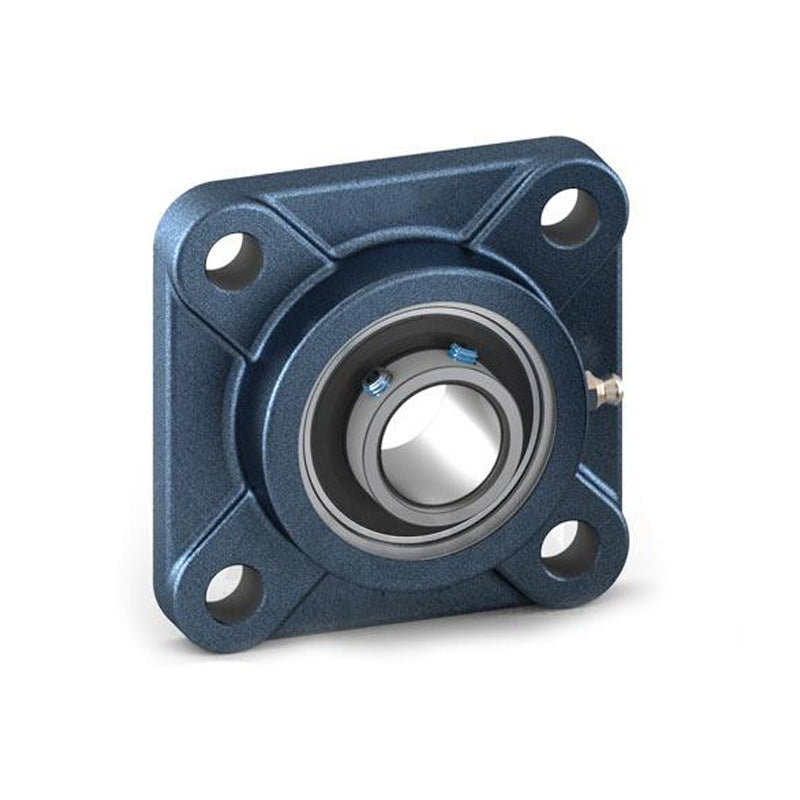

UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSF1-716
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- UCFX
- Bolt Hole Centres:
- 102mm
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| a | 130mm |
| e | 102mm |
| i | 21mm |
| g | 14mm |
| L | 38mm |
| s | 16mm |
| Z | 51.2mm |
| Bi | 49.2mm |
| n | 19mm |
| Bolt Size | M14 |
| Weight | 1.9 kg |
| Dynamic load | 25560 kgf |
| Static load | 1810 kgf |
