SKU: UCFX.12-38

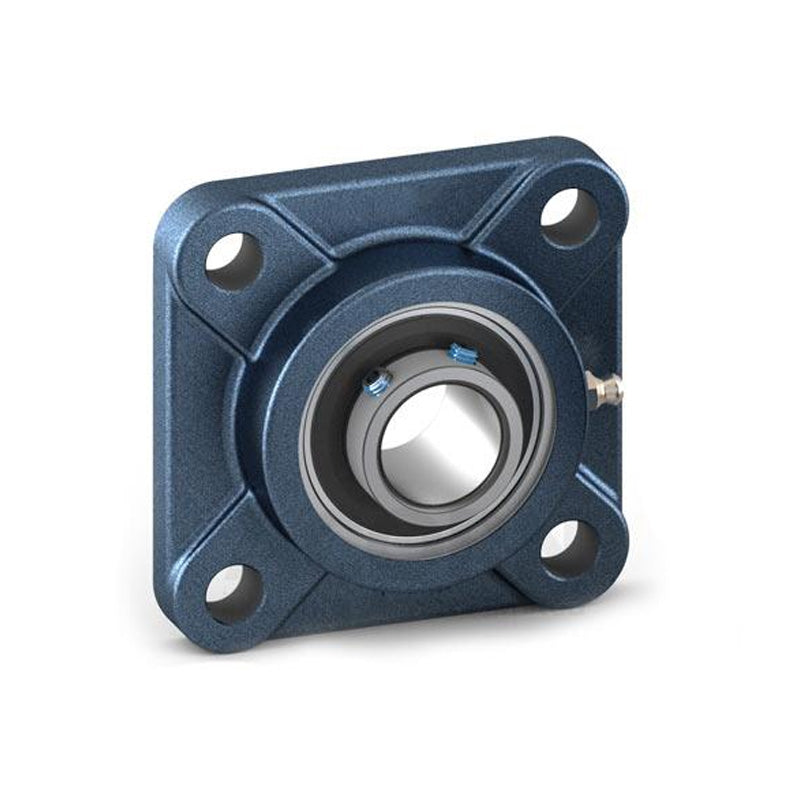

UCFX12-38 Imperial Four Bolt Cast Iron Square Housing with 2-3/8 inch Bore Insert
UCFX12-38 Imperial Four Bolt Cast Iron Square Housing with 2-3/8 inch Bore Insert
Regular price
CHF 13.00
ex VAT
Regular price
Sale price
CHF 13.00
ex VAT
In stock
Price Break
3+
CHF 10.15
4+
CHF 9.58
9+
CHF 9.47
19+
CHF 9.36
49+
CHF 9.24
99+
CHF 9.13
499+
CHF 8.56
999+
CHF 8.44
1999+
CHF 8.33
2999+
CHF 8.22
4999+
CHF 7.99
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Style:
- UCFX
- Bolt Hole Centres:
- 149mm
Technical
Technical
| d | 2-3/8 inch |
|---|---|
| a | 187mm |
| e | 149mm |
| i | 34mm |
| g | 21mm |
| L | 59mm |
| s | 19mm |
| Z | 73.7mm |
| Bi | 70.7mm |
| n | 25.4mm |
| Bolt Size | M16 |
| Weight | 5.5 kg |
| Dynamic load | 4480 kgf |
| Static load | 3470 kgf |
