SKU: UCFX.12.TS.CHAL

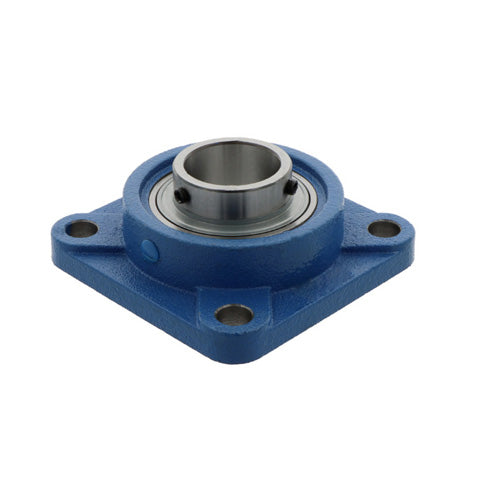

Challenge / FK UCFX12 Metric Cast Iron Four Bolt Square Flange Housing with 60mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Equivalent to: UCFX.12
In stock
Price Break
Couldn't load pickup availability
Description
UCFX Cast Iron Four Bolt Square Flange Housing: These medium-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCFX.12
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 60mm
- Style:
- UCFX
- Bolt Hole Centres:
- 149mm
Technical
| Shaft Diameter d | 60mm |
|---|---|
| Width a | 187mm |
| Recommended Bolt Centres L | 149mm |
| Back of Casting to Centre Line of Bearing i | 34mm |
| Depth of Casting at Bolt g | 21mm |
| Overall Casting Height l | 59mm |
| Bolt Hole Diameter s | 19mm |
| Back of Casting to Bearing Front z | 73.7mm |
| Bearing Insert Width Bi | 65.1mm |
| Back of Bearing to Centre Line n | 25.4mm |
| Bolt Size | M16 |
| Grub Screws x 2 | M10x1.25mm |
| Load Rating (Dynamic) | 4480kg |
| Load Rating (Static) | 3470kg |
| Max Speed | 1500 rev/min |
| Working Temperature | -30°C to +120°C |
| Insert No | UCX12 |
| Housing No | FX12 |
