SKU: UCFX.14-44

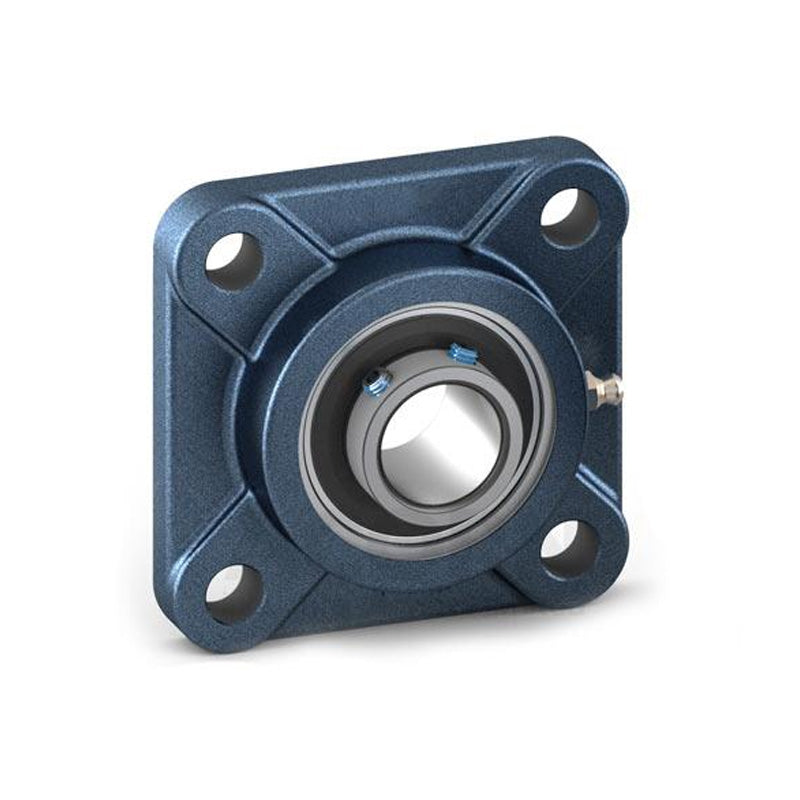

UCFX14-44 Imperial Four Bolt Cast Iron Square Housing with 2-3/4 inch Bore Insert
UCFX14-44 Imperial Four Bolt Cast Iron Square Housing with 2-3/4 inch Bore Insert
Regular price
CHF 126.00
ex VAT
Regular price
Sale price
CHF 126.00
ex VAT
Equivalent to: MSF2-3/4
In stock
Price Break
3+
CHF 99.89
4+
CHF 94.27
9+
CHF 93.15
19+
CHF 92.03
49+
CHF 90.91
99+
CHF 89.78
499+
CHF 84.17
999+
CHF 83.05
1999+
CHF 81.93
2999+
CHF 80.81
4999+
CHF 78.56
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSF2-3/4
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Style:
- UCFX
- Bolt Hole Centres:
- 152mm
Technical
Technical
| d | 2-3/4 inch |
|---|---|
| a | 197mm |
| e | 152mm |
| i | 37mm |
| g | 24mm |
| L | 60mm |
| s | 23mm |
| Z | 81.5mm |
| Bi | 77.8mm |
| n | 33.3mm |
| Bolt Size | M20 |
| Weight | 7.3 kg |
| Dynamic load | 5190 kgf |
| Static load | 4190 kgf |
| Rec max speed | 2300 rpm |
