SKU: UCFX06D1-NTN

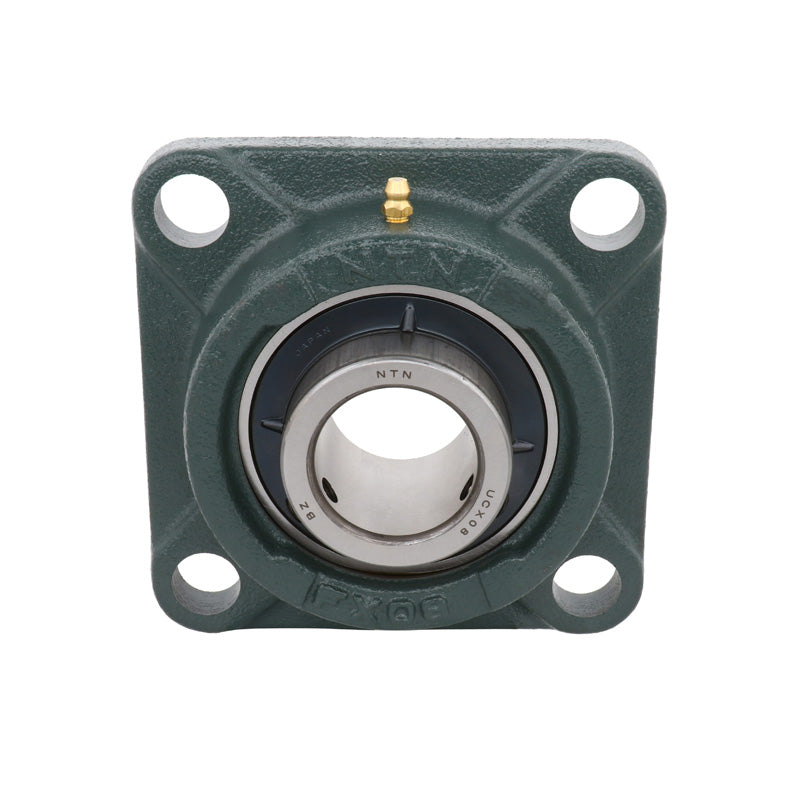

NTN UCFX06D1 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert
NTN UCFX06D1 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert
Regular price
CHF 40.00
ex VAT
Regular price
Sale price
CHF 40.00
ex VAT
In stock
Price Break
3+
CHF 31.72
4+
CHF 29.94
9+
CHF 29.58
19+
CHF 29.22
49+
CHF 28.87
99+
CHF 28.51
499+
CHF 26.73
999+
CHF 26.37
1999+
CHF 26.02
2999+
CHF 25.66
4999+
CHF 24.95
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCFX
- Bolt Hole Centres:
- 92mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 30mm |
| L | 117mm |
| J | 92mm |
| A<sub>2</sub> | 19mm |
| A<sub>1</sub> | 14mm |
| A | 34mm |
| N | 16mm |
| A<sub>0</sub> | 44.4mm |
| B | 42.9mm |
| S | 17.5mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 28.4 kN |
| Static load C<sub>0r</sub> | 15.3 kN |
| Fatigue load limit C<sub>u</sub> | 1.09 kN |
| --- | Unit information |
| Mass | 1.6 kg |
