SKU: UCFX15D1-NTN

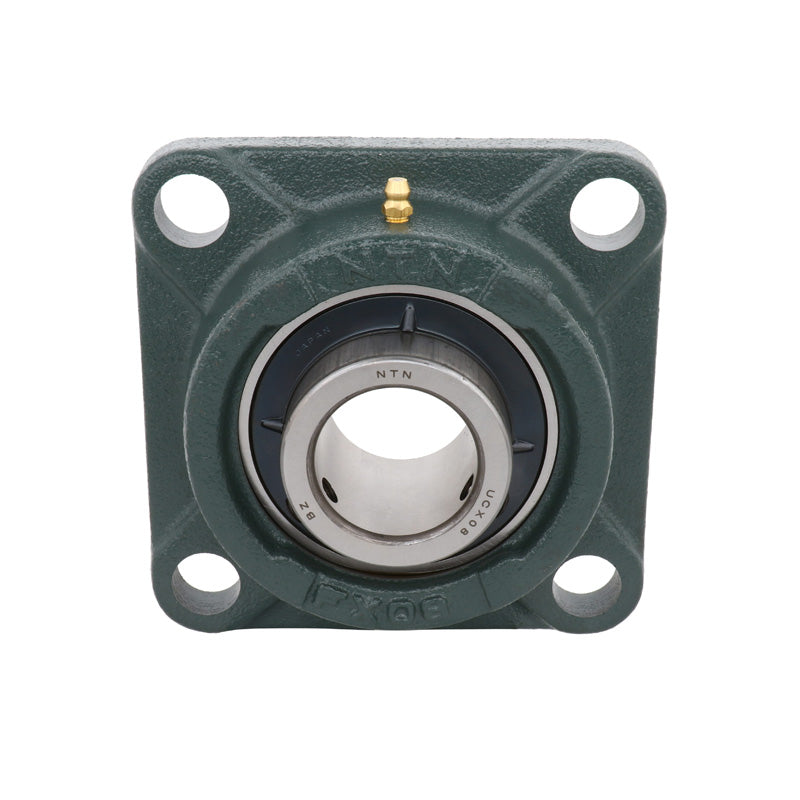

NTN UCFX15D1 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert - Allow 2-3 Days
NTN UCFX15D1 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert - Allow 2-3 Days
Regular price
CHF 198.00
ex VAT
Regular price
Sale price
CHF 198.00
ex VAT
In stock
Price Break
3+
CHF 175.47
4+
CHF 168.38
9+
CHF 164.83
19+
CHF 159.52
49+
CHF 155.97
99+
CHF 147.11
499+
CHF 124.07
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Style:
- UCFX
- Bolt Hole Centres:
- 152mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 75mm |
| L | 197mm |
| J | 152mm |
| A<sub>2</sub> | 40mm |
| A<sub>1</sub> | 24mm |
| A | 68mm |
| N | 23mm |
| A<sub>0</sub> | 89.3mm |
| B | 82.6mm |
| S | 33.3mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 80.5 kN |
| Static load C<sub>0r</sub> | 53 kN |
| Fatigue load limit C<sub>u</sub> | 3.95 kN |
| --- | Unit information |
| Mass | 8.6 kg |
