SKU: UCHA210

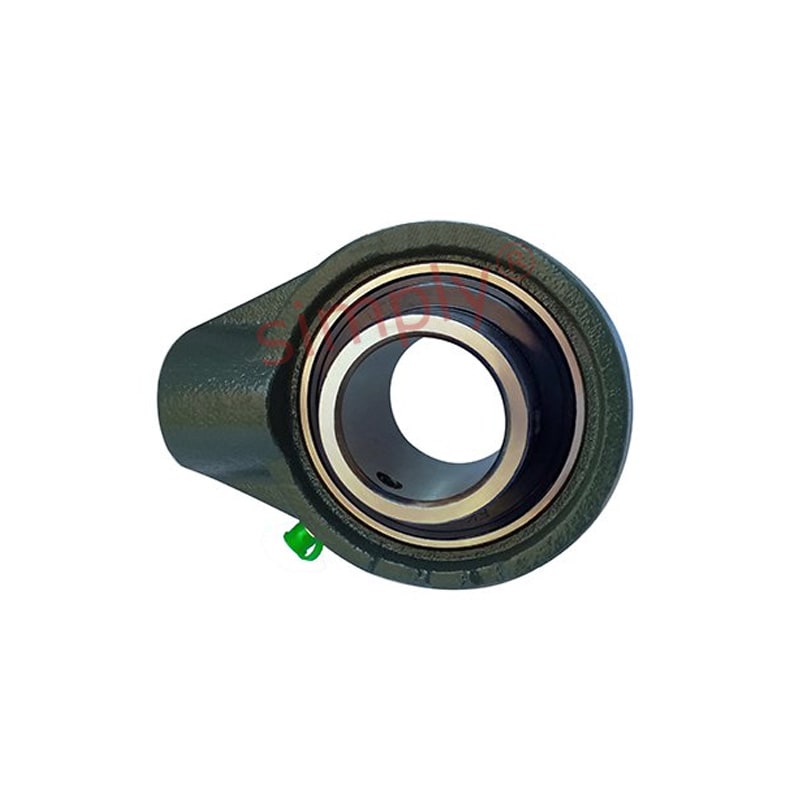

UCHA210 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert
UCHA210 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert
Regular price
CHF 46.77
ex VAT
Regular price
Sale price
CHF 46.77
ex VAT
In stock
Price Break
10+
CHF 41.63
19+
CHF 39.29
29+
CHF 38.82
39+
CHF 38.35
49+
CHF 37.88
74+
CHF 37.42
99+
CHF 35.08
199+
CHF 34.61
249+
CHF 34.14
499+
CHF 33.67
999+
CHF 32.74
Couldn't load pickup availability
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCHA
Technical
Technical
| d | 50mm |
|---|---|
| h | 83mm |
| w | 142mm |
| b | 118mm |
| c | 5mm |
| a | 48mm |
| s | G1 |
| l | 21mm |
| B | 51.6mm |
| n | 19mm |
| Bearing no | UC210 |
| Housing no | HA210 |
| Weight | 2.04 kg |
