SKU: UCHA210-32

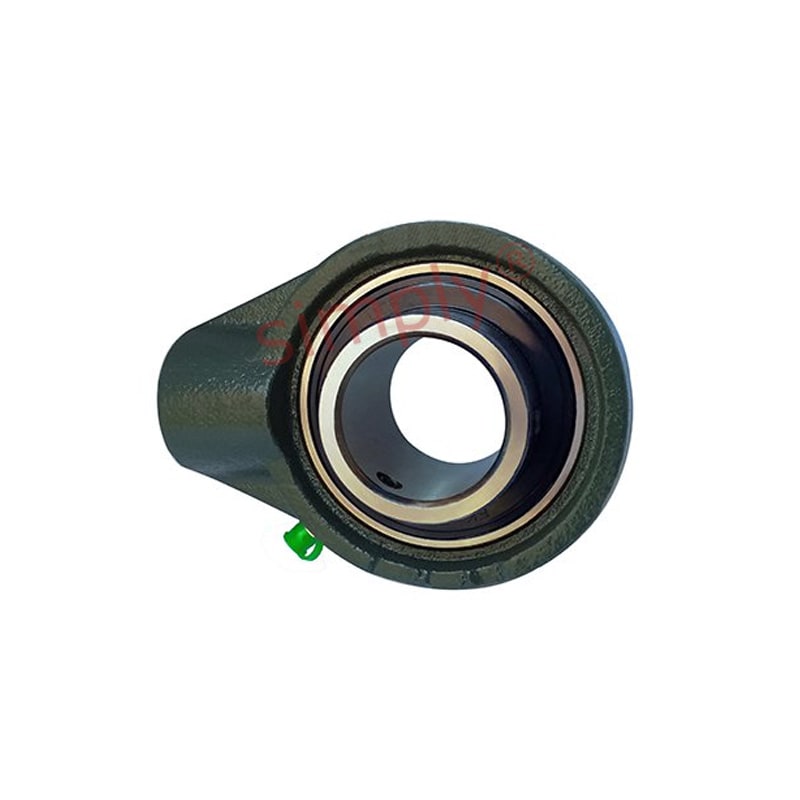

UCHA210-32 Imperial Cast Iron Hanger Bearing Unit with 2 inch Bore Insert
UCHA210-32 Imperial Cast Iron Hanger Bearing Unit with 2 inch Bore Insert
Regular price
CHF 54.00
ex VAT
Regular price
Sale price
CHF 54.00
ex VAT
In stock
Price Break
3+
CHF 42.99
4+
CHF 40.57
9+
CHF 40.09
19+
CHF 39.61
49+
CHF 39.12
99+
CHF 38.64
499+
CHF 36.22
999+
CHF 35.74
1999+
CHF 35.26
2999+
CHF 34.78
4999+
CHF 33.81
Share this product
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCHA
Technical
Technical
| d | 2 inch |
|---|---|
| h | 3-17/64 inch |
| w | 5-19/32 inch |
| b | 4-41/64 inch |
| c | 13/64 inch |
| a | 1-57/64 inch |
| s | G1 |
| l | 53/64 inch |
| B | 2.0315 inch |
| n | 0.748 inch |
| Bearing no | UC210-32 |
| Housing no | HA210 |
| Weight | 2.02 kg |
