SKU: UCHA211-32

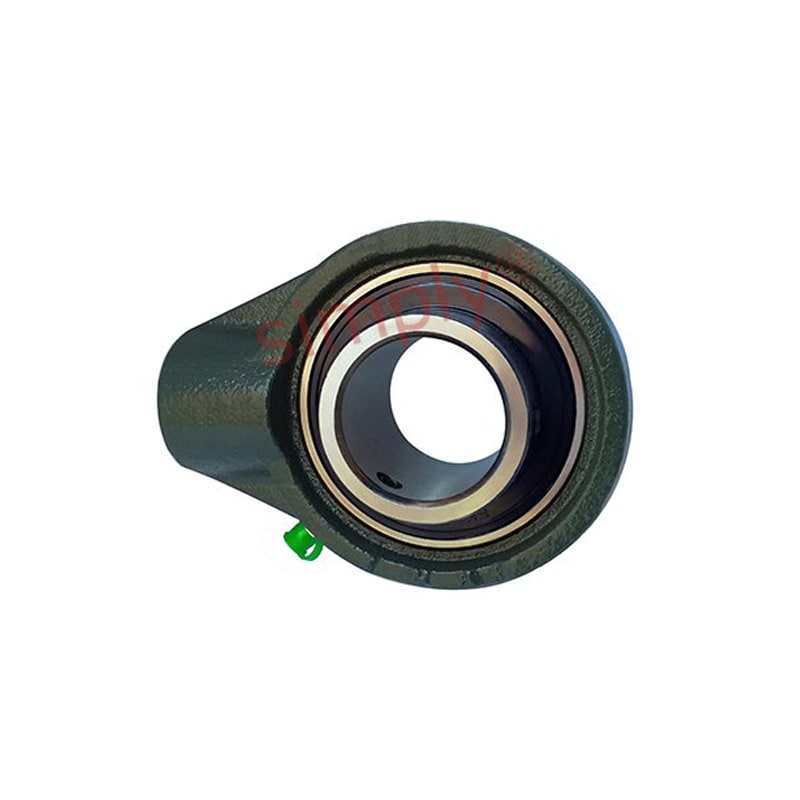

UCHA211-32 Imperial Cast Iron Hanger Bearing Unit with 2 inch Bore Insert
UCHA211-32 Imperial Cast Iron Hanger Bearing Unit with 2 inch Bore Insert
Regular price
CHF 56.76
ex VAT
Regular price
Sale price
CHF 56.76
ex VAT
In stock
Price Break
10+
CHF 50.52
19+
CHF 47.68
29+
CHF 47.11
39+
CHF 46.54
49+
CHF 45.98
74+
CHF 45.41
99+
CHF 42.57
199+
CHF 42.00
249+
CHF 41.43
499+
CHF 40.87
999+
CHF 39.73
Couldn't load pickup availability
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCHA
Technical
Technical
| d | 2 inch |
|---|---|
| h | 3-27/64 inch |
| w | 5-29/32 inch |
| b | 4-61/64 inch |
| c | 9/32 inch |
| a | 2-23/64 inch |
| s | G1-1/4 |
| l | 63/64 inch |
| B | 2.189 inch |
| n | 0.874 inch |
| Bearing no | UC211-32 |
| Housing no | HA211 |
| Weight | 2.597 kg |
