SKU: UCHA212-39

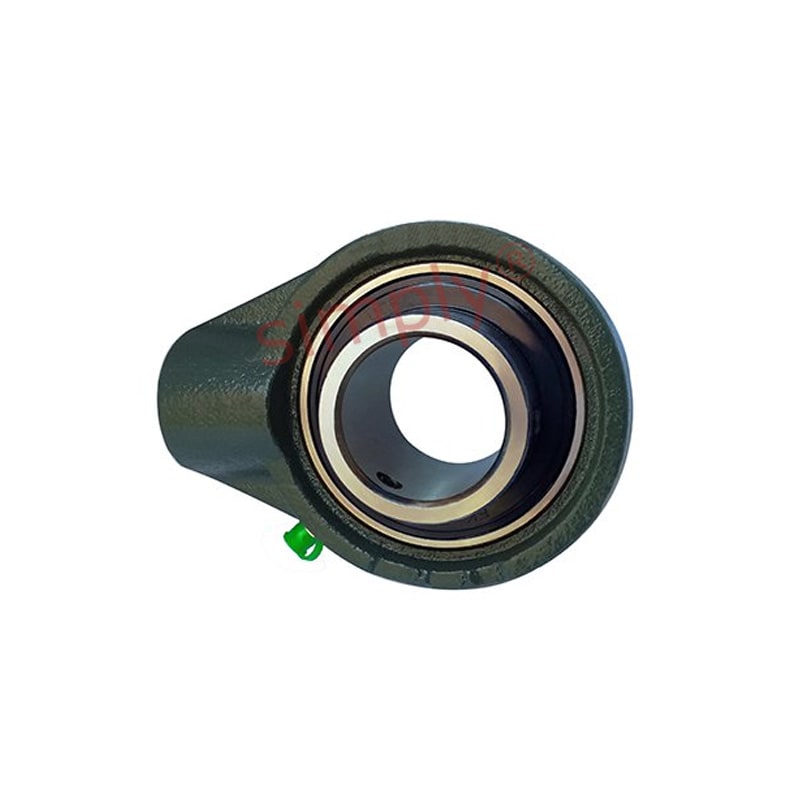

UCHA212-39 Imperial Cast Iron Hanger Bearing Unit with 2-7/16 inch Bore Insert
UCHA212-39 Imperial Cast Iron Hanger Bearing Unit with 2-7/16 inch Bore Insert
Regular price
CHF 102.23
ex VAT
Regular price
Sale price
CHF 102.23
ex VAT
In stock
Price Break
10+
CHF 90.98
19+
CHF 85.87
29+
CHF 84.85
39+
CHF 83.83
49+
CHF 82.81
74+
CHF 81.78
99+
CHF 76.67
199+
CHF 75.65
249+
CHF 74.63
499+
CHF 73.61
999+
CHF 71.56
Couldn't load pickup availability
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Style:
- UCHA
Technical
Technical
| d | 2-7/16 inch |
|---|---|
| h | 4-1/64 inch |
| w | 6-13/16 inch |
| b | 5-19/32 inch |
| c | 23/64 inch |
| a | 2-23/64 inch |
| s | G1-1/4 |
| l | 1-7/64 inch |
| B | 2.563 inch |
| n | 1 inch |
| Bearing no | UC212-39 |
| Housing no | HA212 |
| Weight | 3.465 kg |
