SKU: UCP.205-16.TS.CHAL

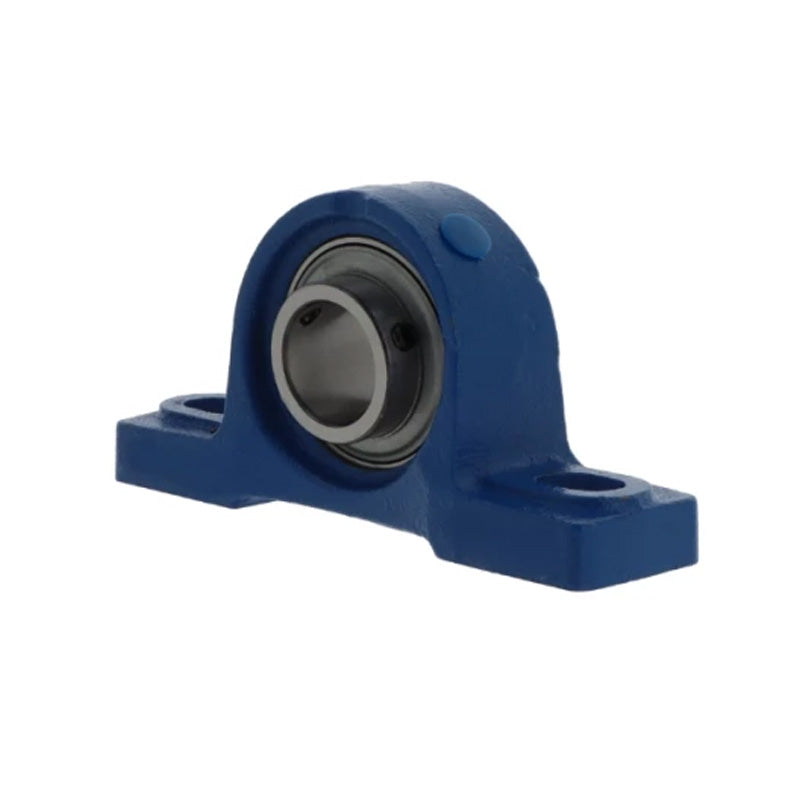

Challenge / FK UCP205-16 Imperial Cast Iron Two Bolt Pillow Block Housing with 1 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Equivalent to: UCP.205-16
In stock
Price Break
Couldn't load pickup availability
Description
UCP Cast Iron Two Bolt Pillow Block Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCP.205-16
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- UCP
- Bolt Hole Centres:
- 105mm
Technical
| Shaft Diameter d | 1 inch |
|---|---|
| Casting Centre Line Height h | 36.5mm |
| Casting Length a | 140mm |
| Recommended Bolt Centres l | 105mm |
| Casting Width b | 38mm |
| Slot Length s<sub>2</sub> | 19mm |
| Slot Width s<sub>1</sub> | 13mm |
| Foot Height g | 15mm |
| Overall Height w | 71mm |
| Bearing Insert Width Bi | 34.1mm |
| Back of Bearing to Centre Line n | 14.3mm |
| Bolt Size | 3/8 inch |
| Grub Screws x 2 | 1/4 - 28UNF inch |
| Load Rating (Dynamic) | 1100kg |
| Load Rating (Static) | 710kg |
| Max Speed | 3400 rev/min |
| Grease Nipple Thread Size | M6 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC205-16 |
| Housing No | P205 |
