SKU: UCP.208-24.TS.CHAL

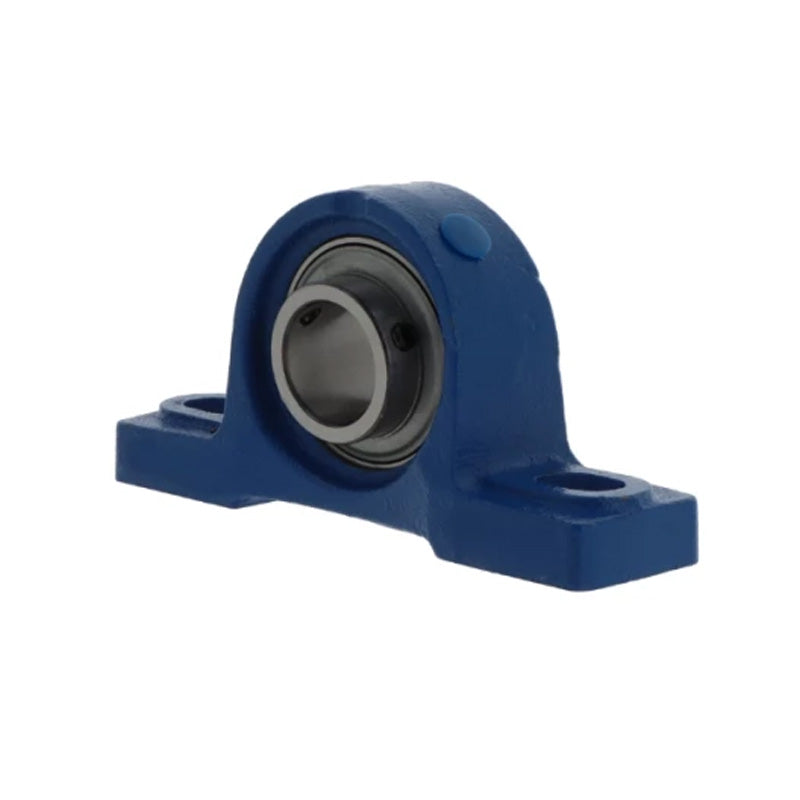

Challenge / FK UCP208-24 Imperial Cast Iron Two Bolt Pillow Block Housing with 1-1/2 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Equivalent to: UCP.208-24
In stock
Price Break
Couldn't load pickup availability
Description
UCP Cast Iron Two Bolt Pillow Block Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCP.208-24
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UCP
- Bolt Hole Centres:
- 137mm
Technical
| Shaft Diameter d | 1-1/2 inch |
|---|---|
| Casting Centre Line Height h | 49.2mm |
| Casting Length a | 184mm |
| Recommended Bolt Centres l | 137mm |
| Casting Width b | 54mm |
| Slot Length s<sub>2</sub> | 20mm |
| Slot Width s<sub>1</sub> | 17mm |
| Foot Height g | 18mm |
| Overall Height w | 100mm |
| Bearing Insert Width Bi | 49.2mm |
| Back of Bearing to Centre Line n | 19mm |
| Bolt Size | 1/2 inch |
| Grub Screws x 2 | 5/16 - 24UNF inch |
| Load Rating (Dynamic) | 2560kg |
| Load Rating (Static) | 1810kg |
| Max Speed | 2200 rev/min |
| Grease Nipple Thread Size | M6 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC208-24 |
| Housing No | P208 |
