SKU: UCP.307

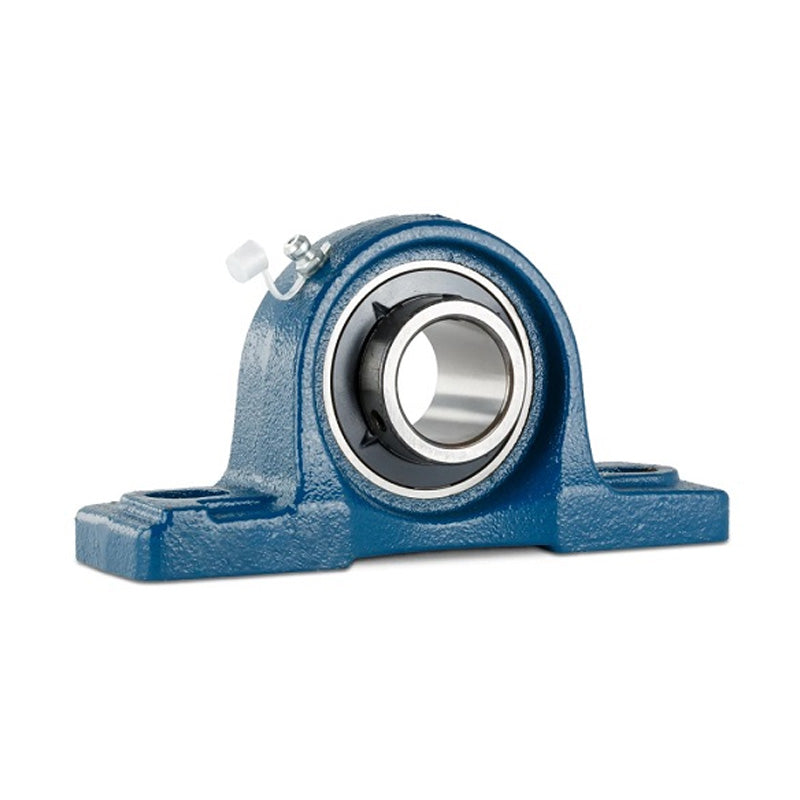

UCP307 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 35mm Bore Insert
UCP307 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 35mm Bore Insert
Regular price
CHF 34.94
ex VAT
Regular price
Sale price
CHF 34.94
ex VAT
In stock
Price Break
10+
CHF 31.10
19+
CHF 29.35
29+
CHF 29.00
39+
CHF 28.65
49+
CHF 28.30
74+
CHF 27.95
99+
CHF 26.21
199+
CHF 25.86
249+
CHF 25.51
499+
CHF 25.16
999+
CHF 24.46
Couldn't load pickup availability
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UCP
- Bolt Hole Centres:
- 160mm
Technical
Technical
| d | 35mm |
|---|---|
| h | 56mm |
| a | 210mm |
| e | 160mm |
| b | 56mm |
| s2 | 25mm |
| s1 | 17mm |
| g | 20mm |
| w | 106mm |
| b1 | 48mm |
| n | 18mm |
| Bolt | 14mm |
| Weight | 2.8 kg |
| Dynamic load | 2620 kgf |
| Static load | 1830 kgf |
