SKU: UCP.308

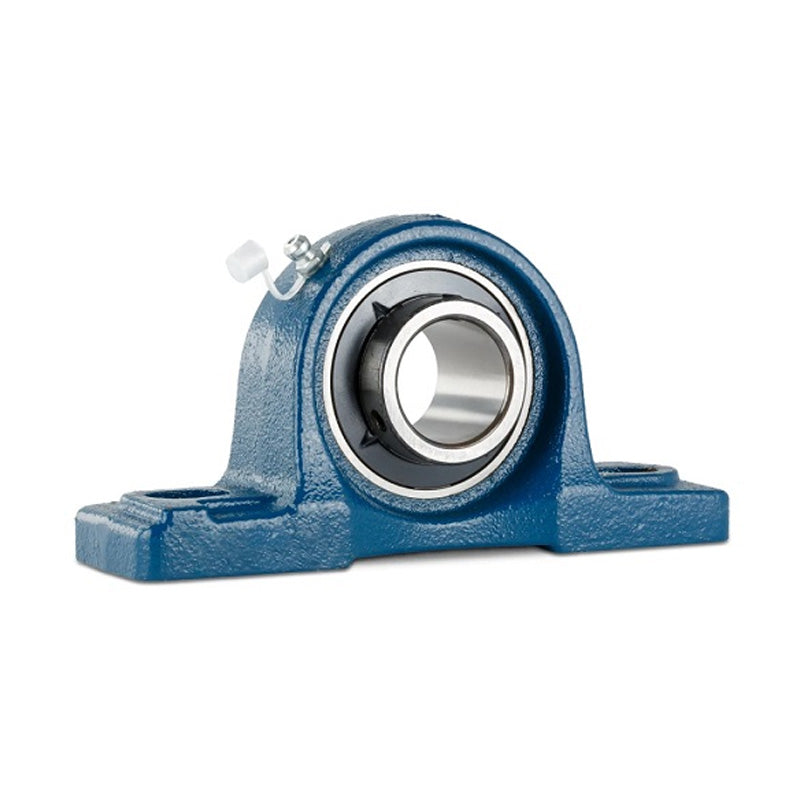

UCP308 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 40mm Bore Insert
UCP308 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 40mm Bore Insert
Regular price
CHF 23.33
ex VAT
Regular price
Sale price
CHF 23.33
ex VAT
In stock
Price Break
10+
CHF 20.76
19+
CHF 19.60
29+
CHF 19.36
39+
CHF 19.13
49+
CHF 18.90
74+
CHF 18.66
99+
CHF 17.50
199+
CHF 17.26
249+
CHF 17.03
499+
CHF 16.80
999+
CHF 16.33
Couldn't load pickup availability
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- UCP
- Bolt Hole Centres:
- 170mm
Technical
Technical
| d | 40mm |
|---|---|
| h | 60mm |
| a | 220mm |
| e | 170mm |
| b | 60mm |
| s2 | 27mm |
| s1 | 17mm |
| g | 22mm |
| w | 116mm |
| b1 | 52mm |
| n | 19mm |
| Bolt | 14mm |
| Weight | 3.6 kg |
| Dynamic load | 3200 kgf |
| Static load | 2280 kgf |
