SKU: UCP.311

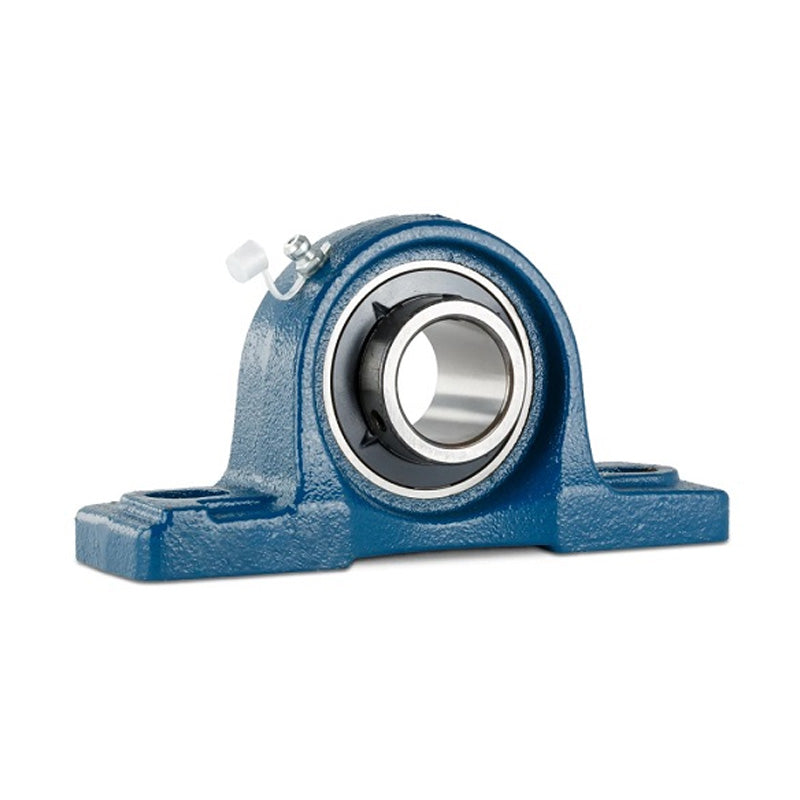

UCP311 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 55mm Bore Insert
UCP311 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 55mm Bore Insert
Regular price
CHF 87.00
ex VAT
Regular price
Sale price
CHF 87.00
ex VAT
In stock
Price Break
3+
CHF 68.66
4+
CHF 64.80
9+
CHF 64.03
19+
CHF 63.26
49+
CHF 62.49
99+
CHF 61.71
499+
CHF 57.86
999+
CHF 57.09
1999+
CHF 56.31
2999+
CHF 55.54
4999+
CHF 54.00
Share this product
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Style:
- UCP
- Bolt Hole Centres:
- 236mm
Technical
Technical
| d | 55mm |
|---|---|
| h | 80mm |
| a | 310mm |
| e | 236mm |
| b | 80mm |
| s2 | 38mm |
| s1 | 20mm |
| g | 30mm |
| w | 154mm |
| b1 | 66mm |
| n | 25mm |
| Bolt | 16mm |
| Weight | 7.8 kg |
| Dynamic load | 5620 kgf |
| Static load | 5280 kgf |
