SKU: UCP.312

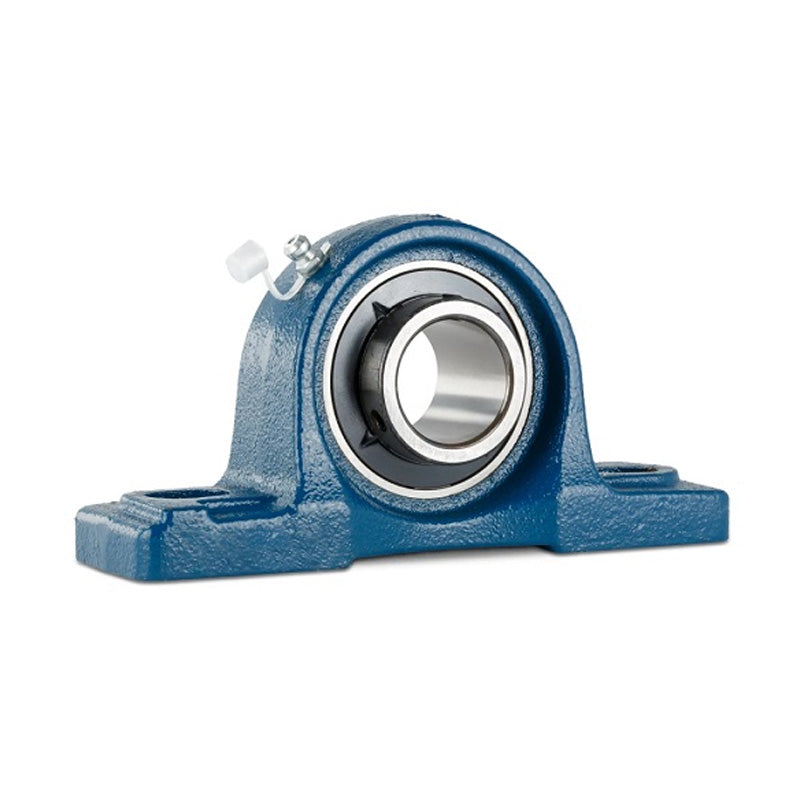

UCP312 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 60mm Bore Insert
UCP312 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 60mm Bore Insert
Regular price
CHF 72.45
ex VAT
Regular price
Sale price
CHF 72.45
ex VAT
In stock
Price Break
10+
CHF 64.48
19+
CHF 60.86
29+
CHF 60.13
39+
CHF 59.41
49+
CHF 58.68
74+
CHF 57.96
99+
CHF 54.34
199+
CHF 53.61
249+
CHF 52.89
499+
CHF 52.16
999+
CHF 50.72
Couldn't load pickup availability
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCP
- Bolt Hole Centres:
- 250mm
Technical
Technical
| d | 60mm |
|---|---|
| h | 85mm |
| a | 330mm |
| e | 250mm |
| b | 85mm |
| s2 | 38mm |
| s1 | 25mm |
| g | 32mm |
| w | 165mm |
| b1 | 71mm |
| n | 26mm |
| Bolt | 20mm |
| Weight | 9.4 kg |
| Dynamic load | 6420 kgf |
| Static load | 4960 kgf |
