SKU: UCP205-16T20-SNR

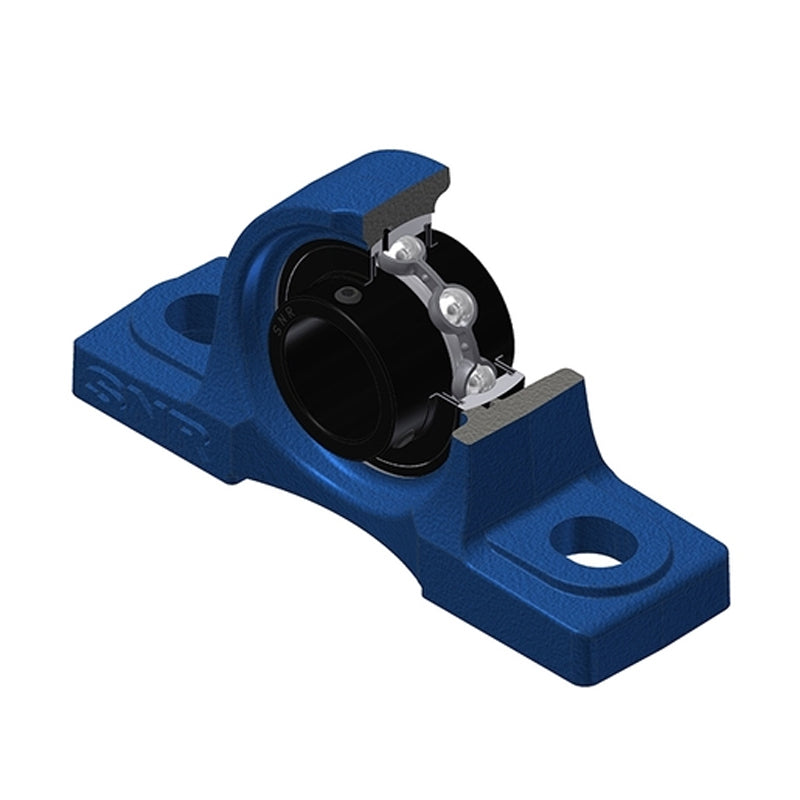

SNR UCP205-16T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
SNR UCP205-16T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price
CHF 60.55
ex VAT
Regular price
Sale price
CHF 60.55
ex VAT
In stock
Price Break
10+
CHF 53.89
19+
CHF 50.86
29+
CHF 50.26
39+
CHF 49.65
49+
CHF 49.05
74+
CHF 48.44
99+
CHF 45.41
199+
CHF 44.81
249+
CHF 44.20
499+
CHF 43.60
999+
CHF 42.39
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25.4mm = 1 Inch
- Style:
- UCP
- Bolt Hole Centres:
- 105mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1 inch |
| A | 38mm |
| A1 | 26mm |
| B | 34mm |
| H | 36.5mm |
| H1 | 16mm |
| H2 | 70mm |
| J | 105mm |
| L | 140mm |
| L1 | 42mm |
| N | 13mm |
| N1 | 19mm |
| S | 14.3mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Mass | 0.8 kg |
| Recommended tightening torque for set screw | 3.7 Nm |
