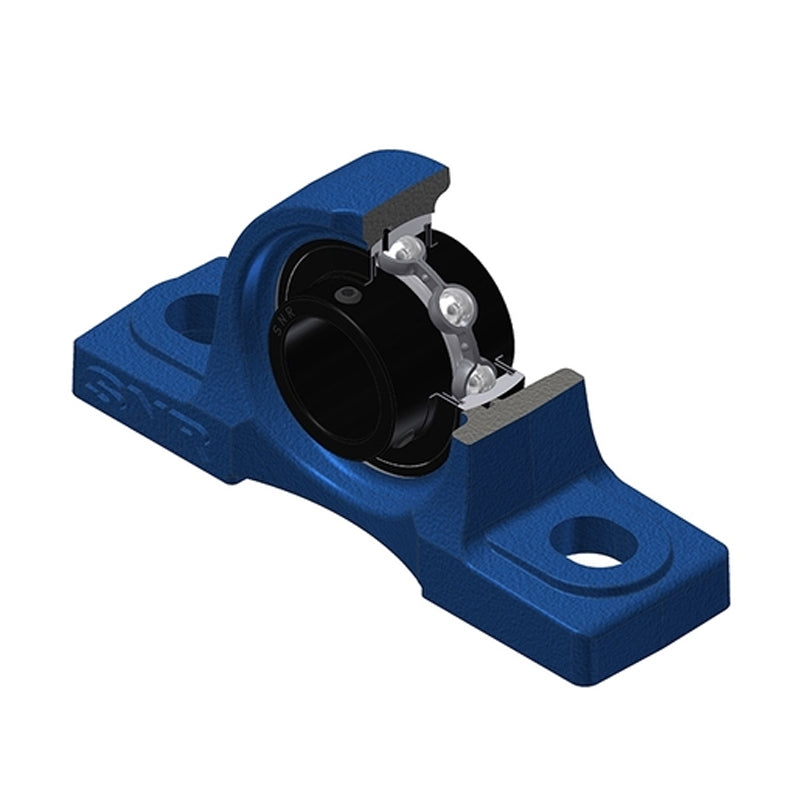

• SNR UCP208-24T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
1 1

SKU: UCP208-24T20-SNR

SNR UCP208-24T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCP208-24T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-1/2 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
CHF 101.00 ex VAT
CHF 101.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 80.07
4+ CHF 75.57
9+ CHF 74.67
19+ CHF 73.77
49+ CHF 72.87
99+ CHF 71.97
499+ CHF 67.47
999+ CHF 66.57
1999+ CHF 65.67
2999+ CHF 64.77
4999+ CHF 62.97
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
UCP
Bolt Hole Centres:
137mm
Technical
--- Dimensions
Shaft diameter d 1-1/2 inch
A 54mm
A1 34mm
B 49.2mm
H 49.2mm
H1 19mm
H2 100mm
J 137mm
L 184mm
L1 52mm
N 17mm
N1 23mm
S 19mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Mass 2.18 kg
Recommended tightening torque for set screw 8 Nm
