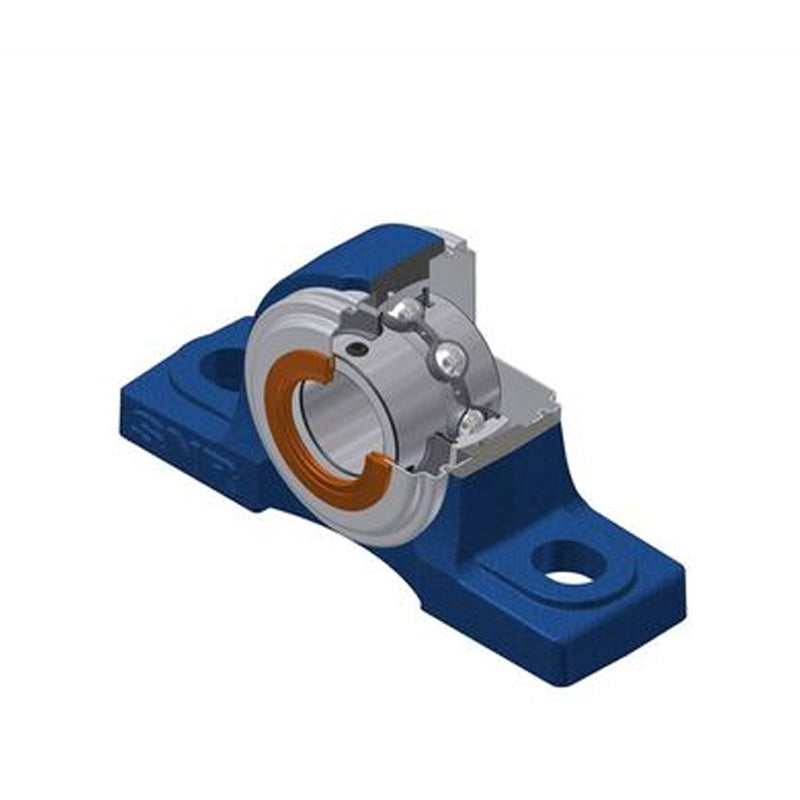

• SNR UCP209CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: UCP209CO-SNR

SNR UCP209CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCP209CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 45mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
CHF 70.00 ex VAT
CHF 70.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 55.05
4+ CHF 51.96
9+ CHF 51.34
19+ CHF 50.72
49+ CHF 50.10
99+ CHF 49.48
499+ CHF 46.39
999+ CHF 45.77
1999+ CHF 45.15
2999+ CHF 44.53
4999+ CHF 43.30
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
UCP
Bolt Hole Centres:
146mm
Technical
--- Dimensions
Shaft diameter d 45mm
A 54mm
A1 37mm
B 49.2mm
H 54mm
H1 20mm
H2 108mm
J 146mm
L 190mm
L1 60mm
N 17mm
N1 23mm
S 19mm
Dz 95mm
Z 47.1mm
Grease fitting G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 2.359 kg
Recommended tightening torque for set screw 11.5 Nm
