SKU: UCP213-40T20-SNR

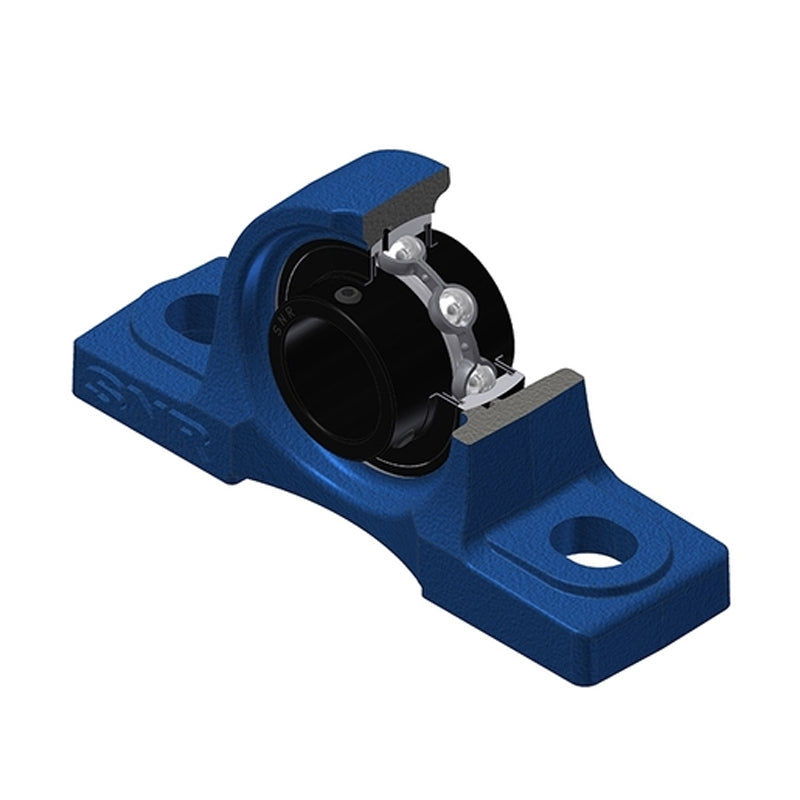

SNR UCP213-40T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/2 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
SNR UCP213-40T20 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/2 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price
CHF 322.00
ex VAT
Regular price
Sale price
CHF 322.00
ex VAT
In stock
Price Break
3+
CHF 285.24
4+
CHF 273.71
9+
CHF 267.95
19+
CHF 259.31
49+
CHF 253.55
99+
CHF 239.14
499+
CHF 201.68
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- UCP
- Bolt Hole Centres:
- 203mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 2-1/2 inch |
| A | 70mm |
| A1 | 46mm |
| B | 65.1mm |
| H | 76.2mm |
| H1 | 27mm |
| H2 | 150mm |
| J | 203mm |
| L | 265mm |
| L1 | 77mm |
| N | 25mm |
| N1 | 29mm |
| S | 25.4mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 57.2 kN |
| Static load C0 | 40 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Mass | 6.14 kg |
| Recommended tightening torque for set screw | 16.8 Nm |
