SKU: UCP215T20-SNR

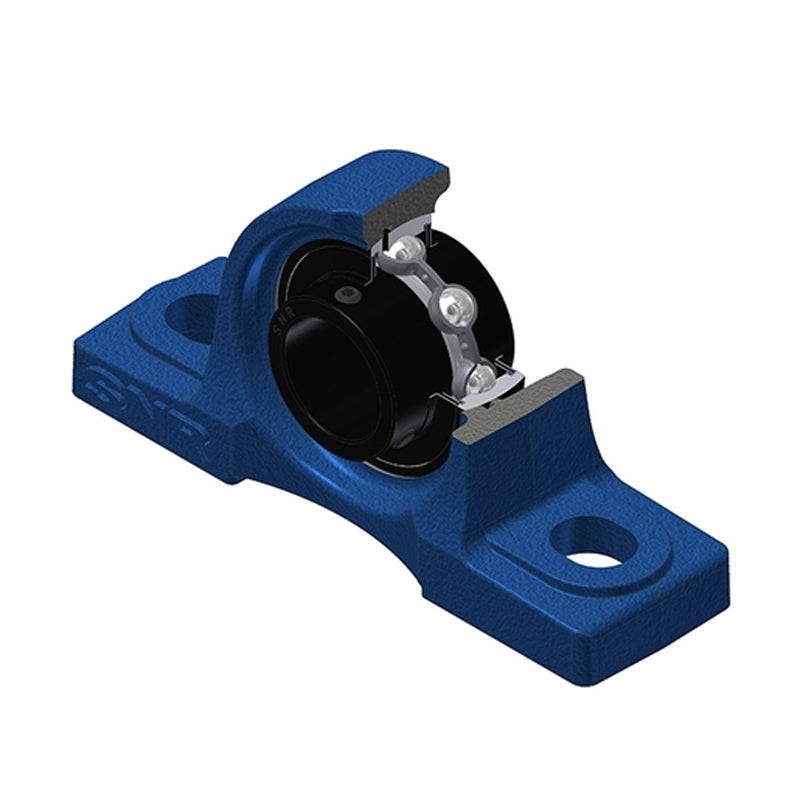

SNR UCP215T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 75mm Bore Insert Wide Temperature Version - Allow 2-3 Days
SNR UCP215T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 75mm Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price
CHF 434.00
ex VAT
Regular price
Sale price
CHF 434.00
ex VAT
In stock
Price Break
3+
CHF 383.79
4+
CHF 368.29
9+
CHF 360.53
19+
CHF 348.90
49+
CHF 341.15
99+
CHF 321.77
499+
CHF 271.37
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 75mm
- Style:
- UCP
- Bolt Hole Centres:
- 217mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 75mm |
| A | 74mm |
| A1 | 48mm |
| B | 77.8mm |
| H | 82.6mm |
| H1 | 28mm |
| H2 | 163mm |
| J | 217mm |
| L | 275mm |
| L1 | 85mm |
| N | 25mm |
| N1 | 31mm |
| S | 33.3mm |
| Grease fitting G | M10x1 |
| --- | Load rating |
| Dynamic load C | 66 kN |
| Static load C0 | 49.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Mass | 7.31 kg |
| Recommended tightening torque for set screw | 33 Nm |
