SKU: UCPA.204
UCPA204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 20mm Bore Insert
UCPA204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 20mm Bore Insert
Regular price
CHF 12.00
ex VAT
Regular price
Sale price
CHF 12.00
ex VAT
Equivalent to: SNP20
In stock
Price Break
3+
CHF 9.50
4+
CHF 8.96
9+
CHF 8.86
19+
CHF 8.75
49+
CHF 8.64
99+
CHF 8.54
499+
CHF 8.00
999+
CHF 7.90
1999+
CHF 7.79
2999+
CHF 7.68
4999+
CHF 7.47
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Equivalent: SNP20
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Style:
- UCPA
- Bolt Hole Centres:
- 52mm

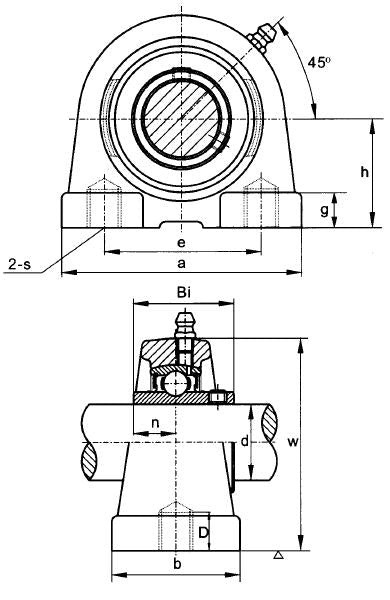

Technical
Technical
| d | 20mm |
|---|---|
| h | 30.2mm |
| a | 76mm |
| e | 52mm |
| b | 40mm |
| s | M10 |
| g | 11mm |
| w | 62mm |
| D | 13mm |
| Bi | 31mm |
| n | 12.7mm |
| Bolt Size | M10 |
| Weight | 0.64 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 7450 rpm |
