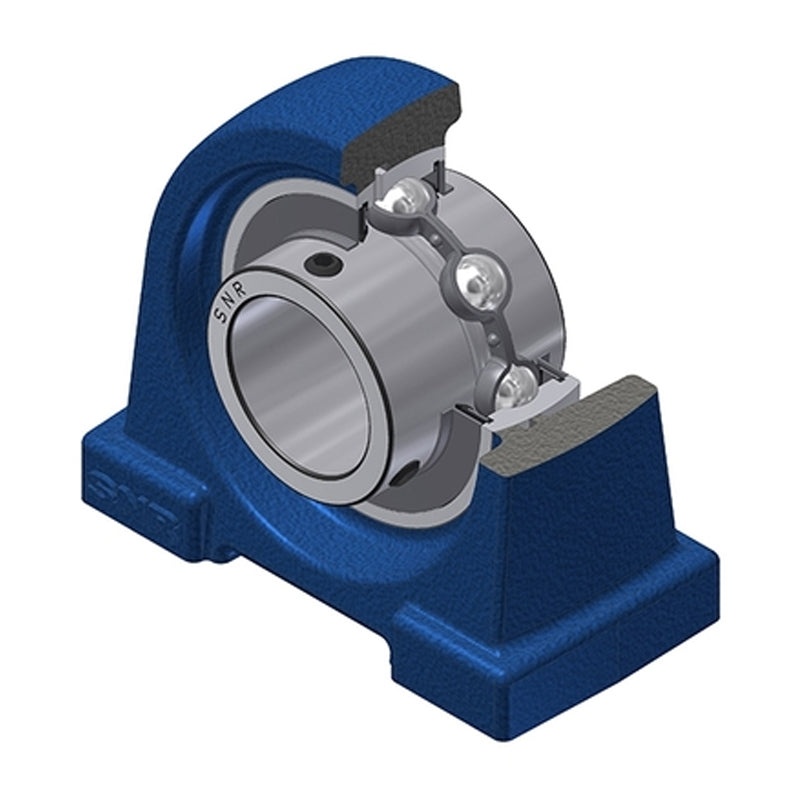

• SNR UCPA209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 45mm Bore Insert - Allow 2-3 Days
1 1

SKU: UCPA209-SNR

SNR UCPA209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 45mm Bore Insert - Allow 2-3 Days

SNR UCPA209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 45mm Bore Insert - Allow 2-3 Days
CHF 56.00 ex VAT
CHF 56.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 44.61
4+ CHF 42.10
9+ CHF 41.60
19+ CHF 41.10
49+ CHF 40.60
99+ CHF 40.10
499+ CHF 37.59
999+ CHF 37.09
1999+ CHF 36.59
2999+ CHF 36.09
4999+ CHF 35.09
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
UCPA
Bolt Hole Centres:
90mm
Technical
--- Dimensions
Shaft diameter 45mm
A 60mm
A1 32mm
B 49.2mm
E 25mm
H 54.2mm
H1 13mm
H2 108mm
J 90mm
L 120mm
L1 42mm
N M14
S 19mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 2.18 kg
