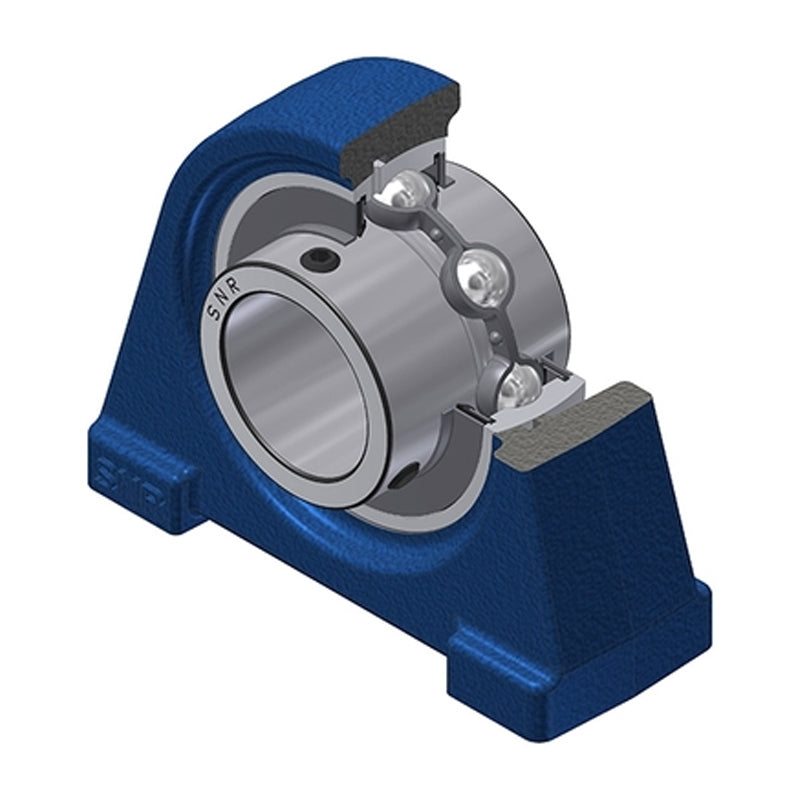

SNR UCPAE208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert - Allow 2-3 Days
SNR UCPAE208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert - Allow 2-3 Days
Regular price
CHF 45.00
ex VAT
Regular price
Sale price
CHF 45.00
ex VAT
In stock
Price Break
3+
CHF 39.49
4+
CHF 37.90
9+
CHF 37.10
19+
CHF 35.90
49+
CHF 35.10
99+
CHF 33.11
499+
CHF 27.92
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCPAE
- Bolt Hole Centres:
- 88.9mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 47mm |
| A1 | 30mm |
| B | 49.2mm |
| E | 15mm |
| H | 49.2mm |
| H1 | 13mm |
| H2 | 99mm |
| J | 88.9mm |
| L | 116mm |
| L1 | 27mm |
| N | M12 |
| S | 19mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.64 kg |
