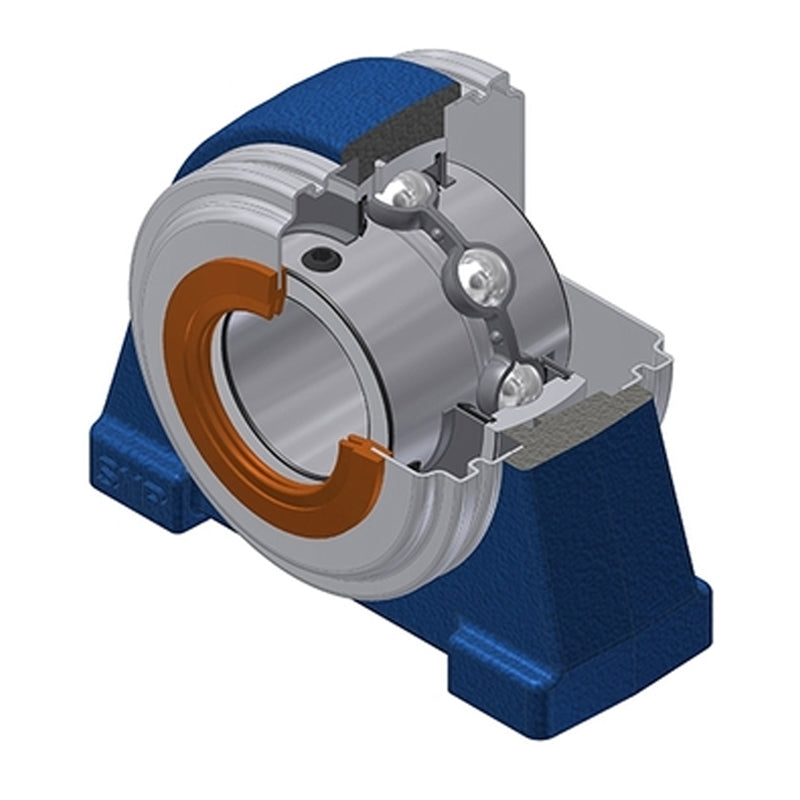

• SNR UCPAE211CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 55mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: UCPAE211CO-SNR

SNR UCPAE211CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 55mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCPAE211CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 55mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
CHF 112.00 ex VAT
CHF 112.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 98.69
4+ CHF 94.71
9+ CHF 92.71
19+ CHF 89.72
49+ CHF 87.73
99+ CHF 82.74
499+ CHF 69.78
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
55mm
Style:
UCPAE
Bolt Hole Centres:
118mm
Technical
--- Dimensions
Shaft diameter 55mm
A 60mm
A1 35mm
B 55.6mm
E 20mm
H 64mm
H1 16mm
H2 125mm
J 118mm
L 150mm
L1 32mm
N M16
S 22.2mm
Dz 110mm
Z 77.7mm
G R1/8″
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 22 Nm
Mass 3.262 kg
