SKU: UCPE211CO-SNR

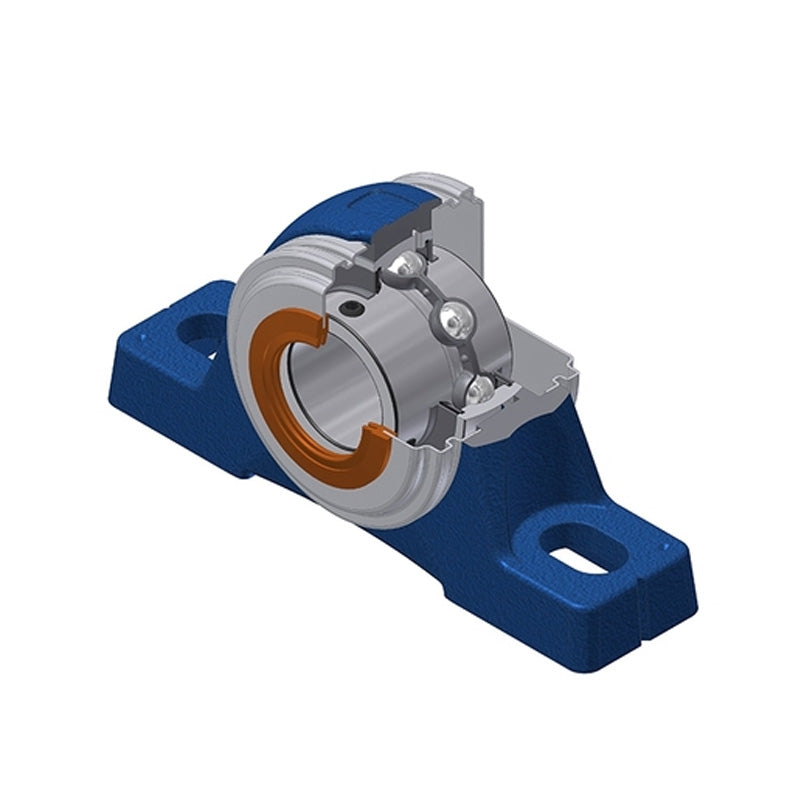

SNR UCPE211CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCPE211CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price CHF 199.00 ex VAT
Regular price Sale price CHF 199.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 175.59
4+ CHF 168.49
9+ CHF 164.94
19+ CHF 159.62
49+ CHF 156.08
99+ CHF 147.21
499+ CHF 124.15
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 55mm
A 60mm
A1 35mm
B 55.6mm
H 63.5mm
H1 22.5mm
H2 124.5mm
J 176mm
L 222mm
L1 68mm
N 18mm
N1 30mm
S 22.2mm
Dz 110mm
Z 77.7mm
G R1/8″
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.662 kg
