SKU: UCPE213-SNR

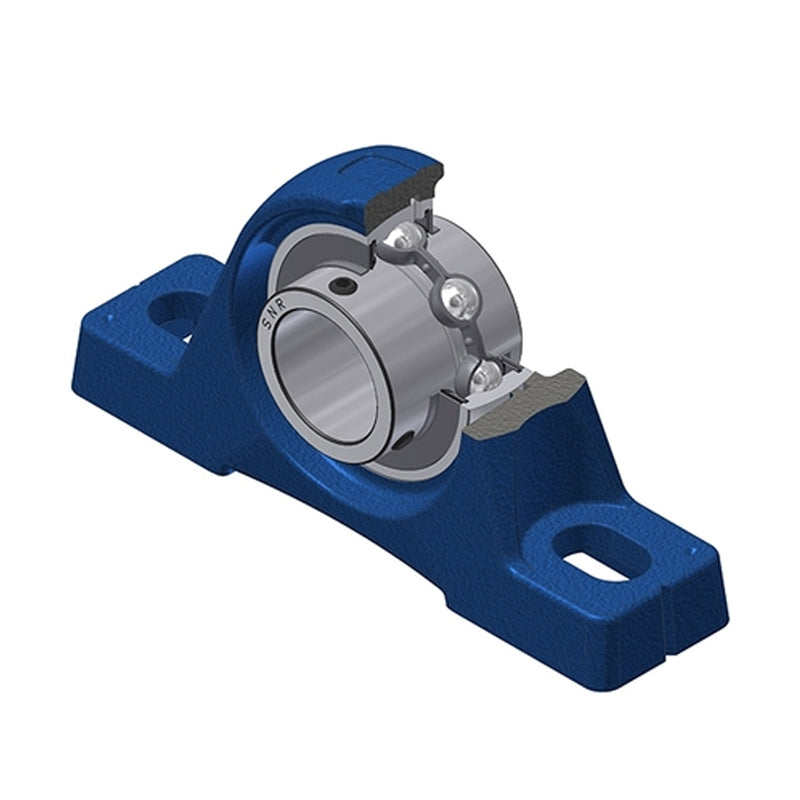

SNR UCPE213 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert - Allow 2-3 Days

SNR UCPE213 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert - Allow 2-3 Days
Regular price CHF 90.00 ex VAT
Regular price Sale price CHF 90.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 71.49
4+ CHF 67.47
9+ CHF 66.67
19+ CHF 65.87
49+ CHF 65.06
99+ CHF 64.26
499+ CHF 60.24
999+ CHF 59.44
1999+ CHF 58.64
2999+ CHF 57.83
4999+ CHF 56.23
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 65mm
A 65mm
A1 44mm
B 65.1mm
H 79.4mm
H1 27.5mm
H2 156mm
J 203mm
L 260mm
L1 77mm
N 22mm
N1 28mm
S 25.4mm
G R1/8″
--- Load rating
Dynamic load C 57.2 kN
Static load C0 40 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 6.36 kg
