SKU: UCPE213N-SNR

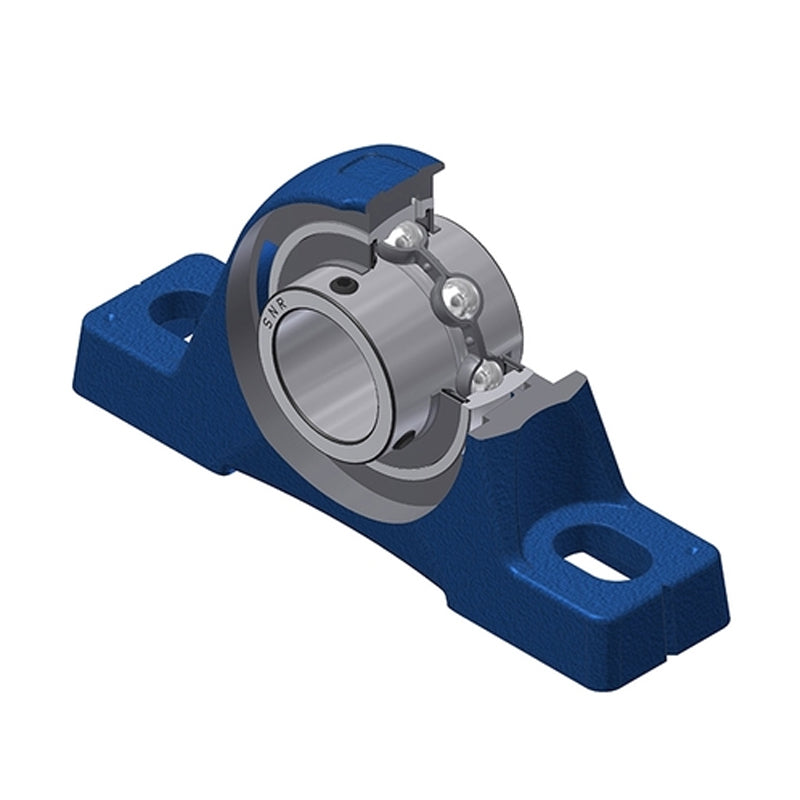

SNR UCPE213N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert - Allow 2-3 Days

SNR UCPE213N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert - Allow 2-3 Days
Regular price CHF 149.00 ex VAT
Regular price Sale price CHF 149.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 131.68
4+ CHF 126.36
9+ CHF 123.70
19+ CHF 119.71
49+ CHF 117.05
99+ CHF 110.40
499+ CHF 93.11
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 65mm
A 65mm
A1 44mm
B 65.1mm
H 79.4mm
H1 27.5mm
H2 156mm
J 203mm
L 260mm
L1 77mm
N 22mm
N1 28mm
S 25.4mm
G R1/8″
--- Load rating
Dynamic load C 57.2 kN
Static load C0 40 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 6.16 kg
