SKU: UCPE214-43-SNR

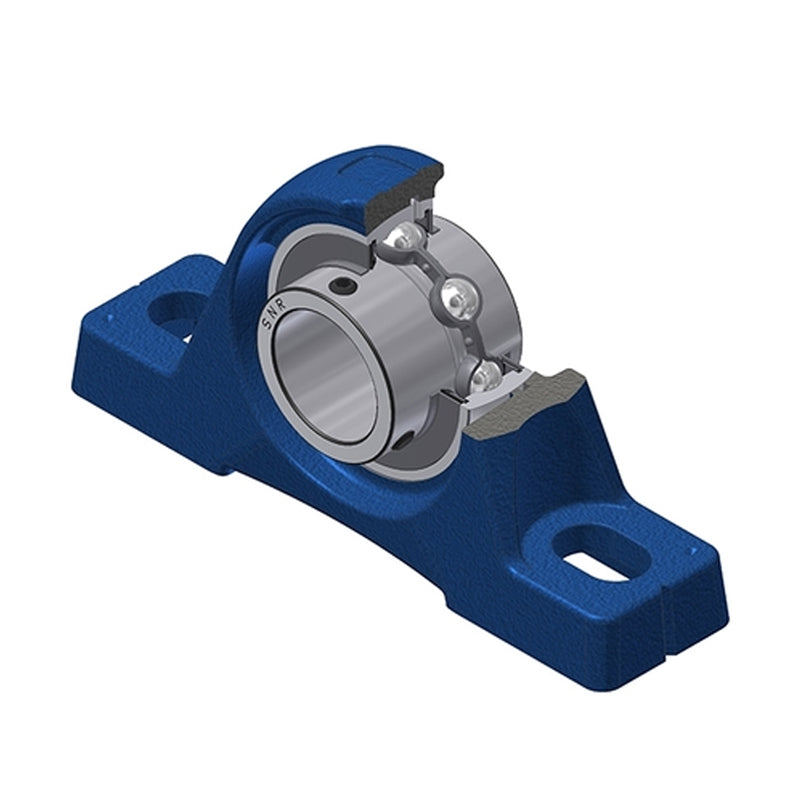

SNR UCPE214-43 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-11/16 inch Bore Insert - Allow 2-3 Days

SNR UCPE214-43 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-11/16 inch Bore Insert - Allow 2-3 Days
Regular price CHF 174.00 ex VAT
Regular price Sale price CHF 174.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 153.57
4+ CHF 147.36
9+ CHF 144.26
19+ CHF 139.61
49+ CHF 136.51
99+ CHF 128.75
499+ CHF 108.58
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 2-11/16mm
A 65mm
A1 44mm
B 74.6mm
H 79.4mm
H1 27.5mm
H2 156mm
J 203mm
L 260mm
L1 77mm
N 22mm
N1 28mm
S 30.2mm
G R1/8″
--- Load rating
Dynamic load C 62 kN
Static load C0 45 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 27.1 Nm
Mass 6.12 kg
