SKU: UCPE216-SNR

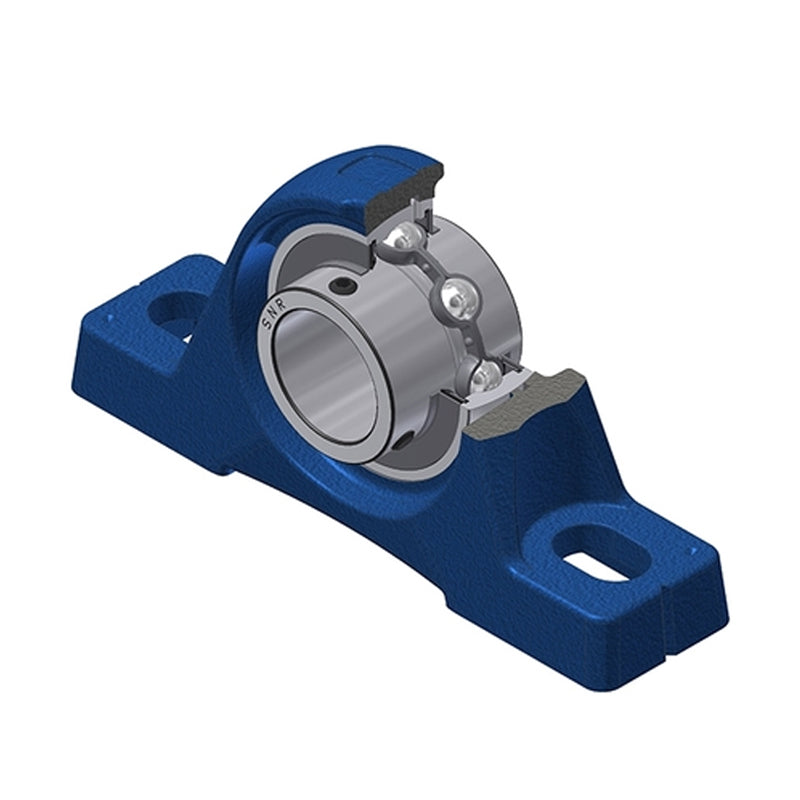

SNR UCPE216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days

SNR UCPE216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days
Regular price CHF 151.00 ex VAT
Regular price Sale price CHF 151.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 120.10
4+ CHF 113.35
9+ CHF 112.01
19+ CHF 110.66
49+ CHF 109.31
99+ CHF 107.96
499+ CHF 101.21
999+ CHF 99.86
1999+ CHF 98.51
2999+ CHF 97.16
4999+ CHF 94.46
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 80mm
A 78mm
A1 55mm
B 82.6mm
H 89mm
H1 30mm
H2 175mm
J 232mm
L 290mm
L1 90mm
N 26mm
N1 34mm
S 33.3mm
G R1/8″
--- Load rating
Dynamic load C 72.5 kN
Static load C0 54.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 9.09 kg
