SKU: UCPE218-SNR

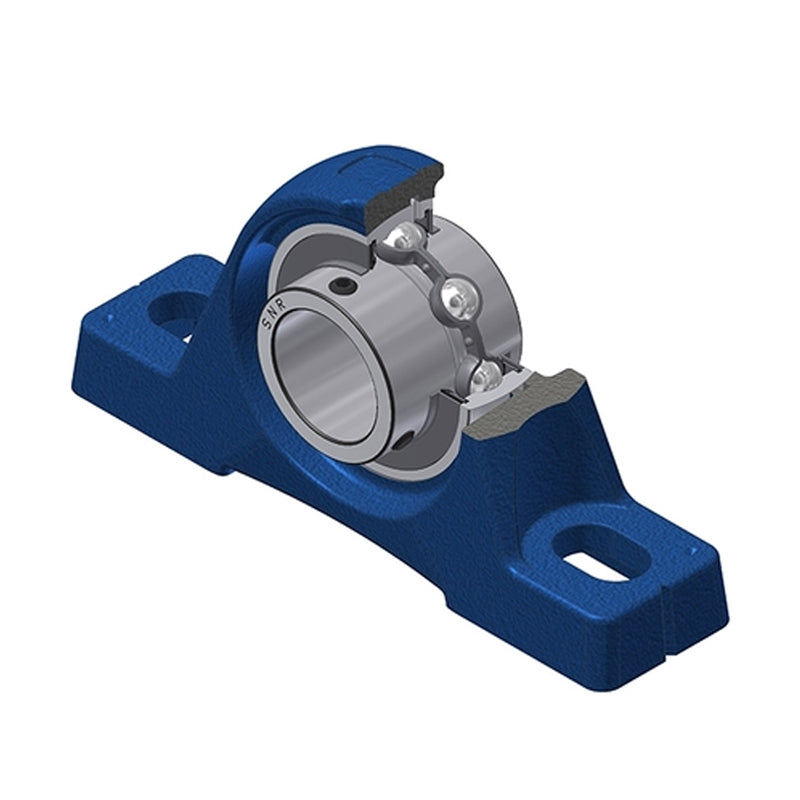

SNR UCPE218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days

SNR UCPE218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days
Regular price CHF 242.00 ex VAT
Regular price Sale price CHF 242.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 192.12
4+ CHF 181.32
9+ CHF 179.17
19+ CHF 177.01
49+ CHF 174.85
99+ CHF 172.69
499+ CHF 161.90
999+ CHF 159.74
1999+ CHF 157.58
2999+ CHF 155.42
4999+ CHF 151.10
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 90mm
A 85mm
A1 55mm
B 96mm
H 101.6mm
H1 35mm
H2 200mm
J 268mm
L 330mm
L1 99mm
N 27mm
N1 35mm
S 39.7mm
G R1/8″
--- Load rating
Dynamic load C 96 kN
Static load C0 71.5 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 13.55 kg
