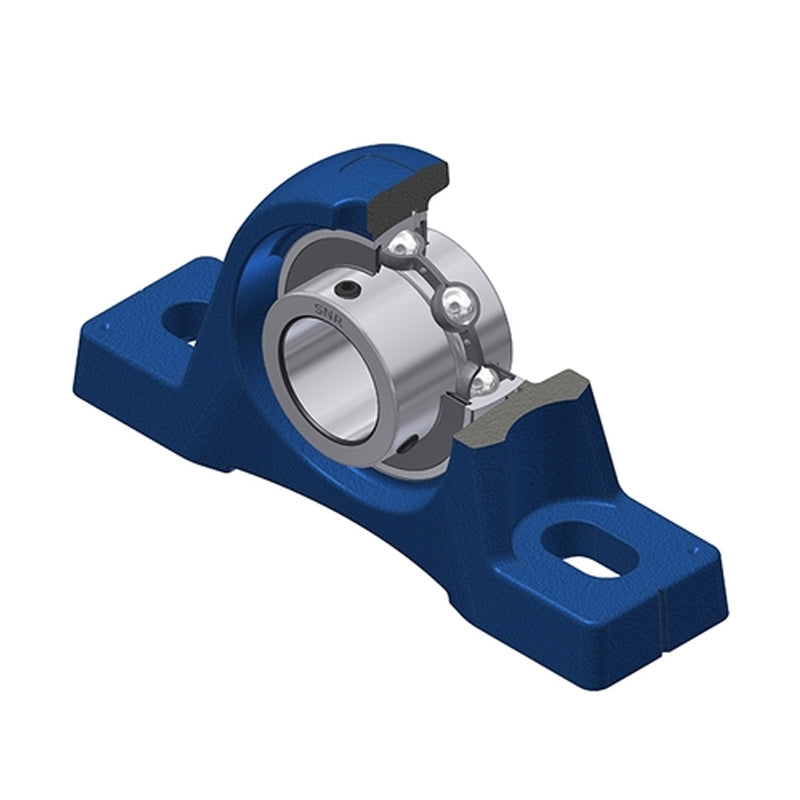

SNR UCPEX09 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert
SNR UCPEX09 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert
Regular price
CHF 62.12
ex VAT
Regular price
Sale price
CHF 62.12
ex VAT
In stock
Price Break
5+
CHF 61.50
10+
CHF 59.01
20+
CHF 57.77
50+
CHF 55.91
100+
CHF 54.67
500+
CHF 51.56
1000+
CHF 43.48
Couldn't load pickup availability
Description
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCPEX
- Bolt Hole Centres:
- 159mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| A | 60mm |
| A1 | 39.8mm |
| B | 51.6mm |
| H | 58.7mm |
| H1 | 22.5mm |
| H2 | 116.7mm |
| J | 159mm |
| L | 222.2mm |
| L1 | 65mm |
| N | 18mm |
| N1 | 32mm |
| S | 19mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.25 kg |
