SKU: UCPH201-8

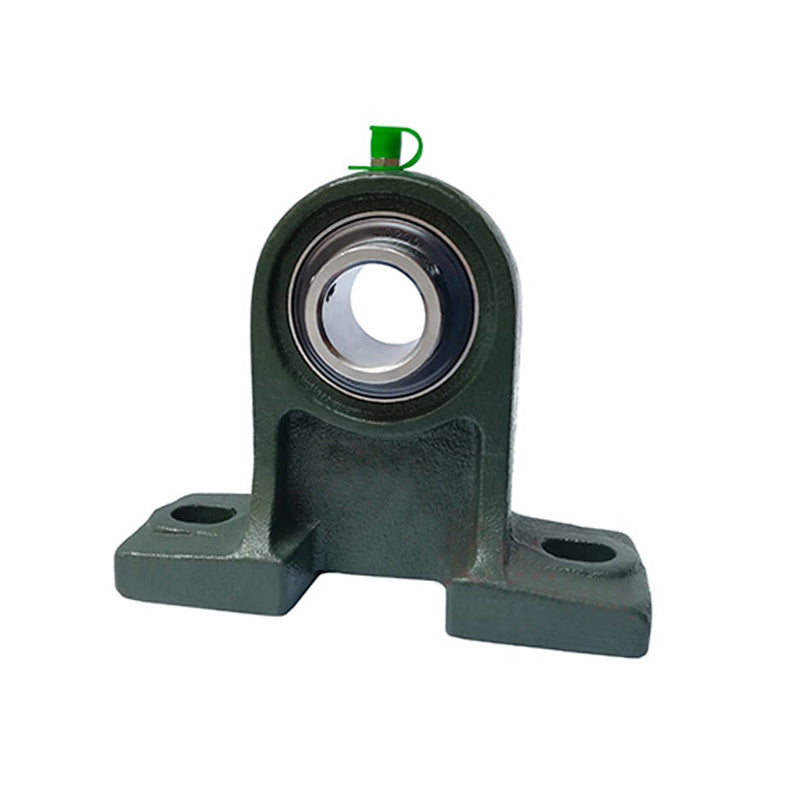

UCPH201-8 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1/2 inch Insert
UCPH201-8 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1/2 inch Insert
Regular price
CHF 18.00
ex VAT
Regular price
Sale price
CHF 18.00
ex VAT
In stock
Price Break
3+
CHF 13.73
4+
CHF 12.96
9+
CHF 12.81
19+
CHF 12.65
49+
CHF 12.50
99+
CHF 12.35
499+
CHF 11.57
999+
CHF 11.42
1999+
CHF 11.27
2999+
CHF 11.11
4999+
CHF 10.80
Description
Description
UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Style:
- UCPH
- Bolt Hole Centres:
- 95.25mm = 3.75 (3-3/4) inch
Technical
Technical
| d | 1/2 inch |
|---|---|
| h | 2-3/4 inch |
| a | 5 inch |
| e | 3-3/4 inch |
| b | 1-9/16 inch |
| s1 | 1/2 inch |
| s2 | 3/4 inch |
| g | 19/32 inch |
| w | 3-63/64 inch |
| B | 1.2205 inch |
| n | 0.5 inch |
| Bolt size | 3/8 inch |
| Bearing no | UC201-8 |
| Housing no | PH201 |
| Weight | 0.83 kg |
