SKU: UCPH206

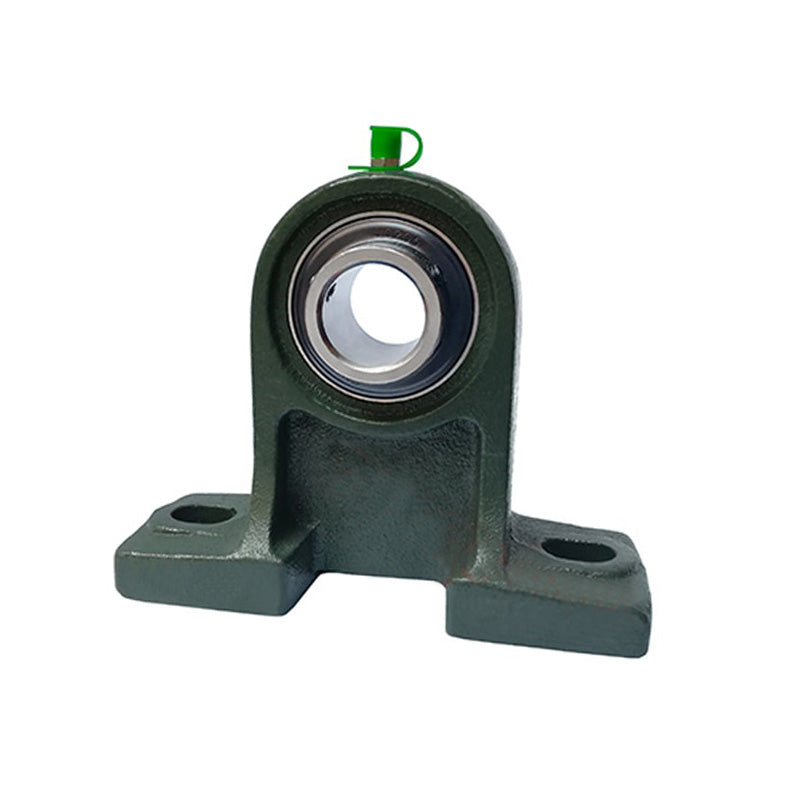

UCPH206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Insert
UCPH206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Insert
Regular price
CHF 13.16
ex VAT
Regular price
Sale price
CHF 13.16
ex VAT
In stock
Price Break
10+
CHF 11.71
19+
CHF 11.05
29+
CHF 10.92
39+
CHF 10.79
49+
CHF 10.66
74+
CHF 10.53
99+
CHF 9.87
199+
CHF 9.74
249+
CHF 9.61
499+
CHF 9.48
999+
CHF 9.21
Couldn't load pickup availability
Description
Description
UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UCPH
- Bolt Hole Centres:
- 121mm
Technical
Technical
| d | 30mm |
|---|---|
| h | 90mm |
| a | 161mm |
| e | 121mm |
| b | 50mm |
| s1 | 17mm |
| s2 | 21mm |
| g | 17mm |
| w | 130mm |
| B | 38.1mm |
| n | 15.9mm |
| Bolt size | M14 |
| Bearing no | UC206 |
| Housing no | PH206 |
| Weight | 1.45 kg |
