SKU: UCPH207-21

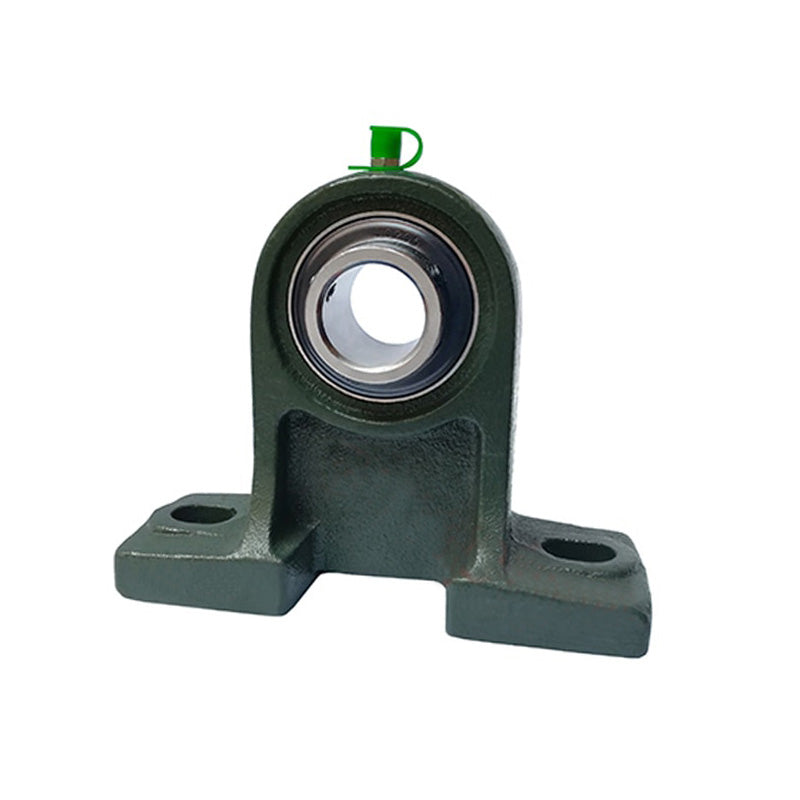

UCPH207-21 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-5/16 inch Insert
UCPH207-21 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-5/16 inch Insert
Regular price
CHF 30.79
ex VAT
Regular price
Sale price
CHF 30.79
ex VAT
In stock
Price Break
10+
CHF 27.40
19+
CHF 25.86
29+
CHF 25.56
39+
CHF 25.25
49+
CHF 24.94
74+
CHF 24.63
99+
CHF 23.09
199+
CHF 22.78
249+
CHF 22.48
499+
CHF 22.17
999+
CHF 21.55
Couldn't load pickup availability
Description
Description
UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Style:
- UCPH
- Bolt Hole Centres:
- 127mm = 5 inch
Technical
Technical
| d | 1-5/16 inch |
|---|---|
| h | 3-47/64 inch |
| a | 6-17/32 inch |
| e | 5 inch |
| b | 2-23/64 inch |
| s1 | 43/64 inch |
| s2 | 53/64 inch |
| g | 45/64 inch |
| w | 5-33/54 inch |
| B | 1.689 inch |
| n | 0.689 inch |
| Bolt size | 1/2 inch |
| Bearing no | UC207-21 |
| Housing no | PH207 |
| Weight | 1.86 kg |
