SKU: UCPH208

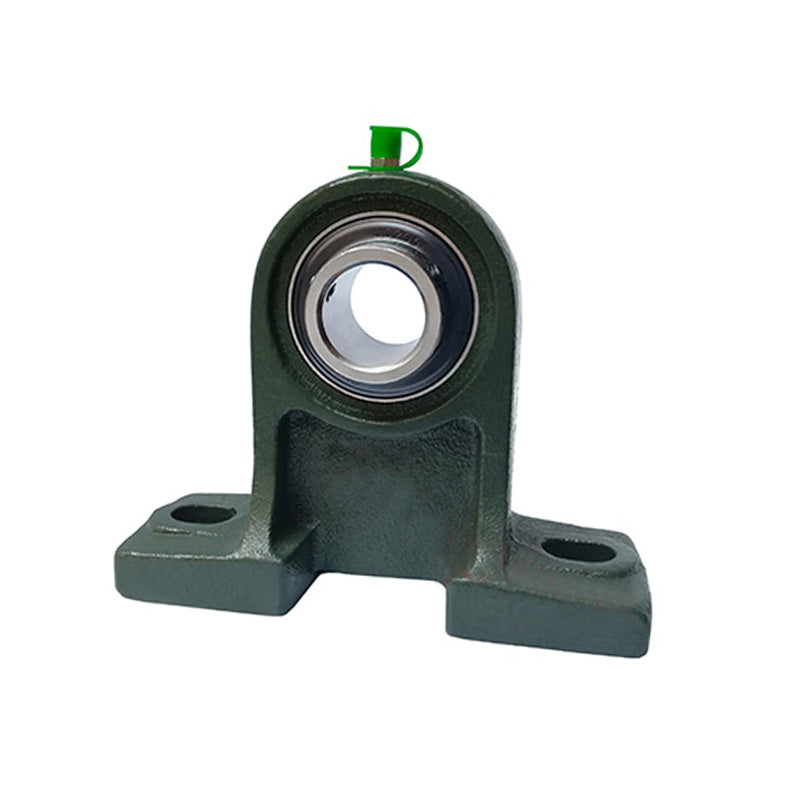

UCPH208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Insert
UCPH208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Insert
Regular price
CHF 35.73
ex VAT
Regular price
Sale price
CHF 35.73
ex VAT
In stock
Price Break
10+
CHF 31.80
19+
CHF 30.01
29+
CHF 29.66
39+
CHF 29.30
49+
CHF 28.94
74+
CHF 28.58
99+
CHF 26.80
199+
CHF 26.44
249+
CHF 26.08
499+
CHF 25.73
999+
CHF 25.01
Couldn't load pickup availability
Description
Description
UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- UCPH
- Bolt Hole Centres:
- 137mm
Technical
Technical
| d | 40mm |
|---|---|
| h | 100mm |
| a | 178mm |
| e | 137mm |
| b | 70mm |
| s1 | 17mm |
| s2 | 21mm |
| g | 19mm |
| w | 150mm |
| B | 49.2mm |
| n | 19mm |
| Bolt size | M14 |
| Bearing no | UC208 |
| Housing no | PH208 |
| Weight | 2.4 kg |
