SKU: UCPH208-25

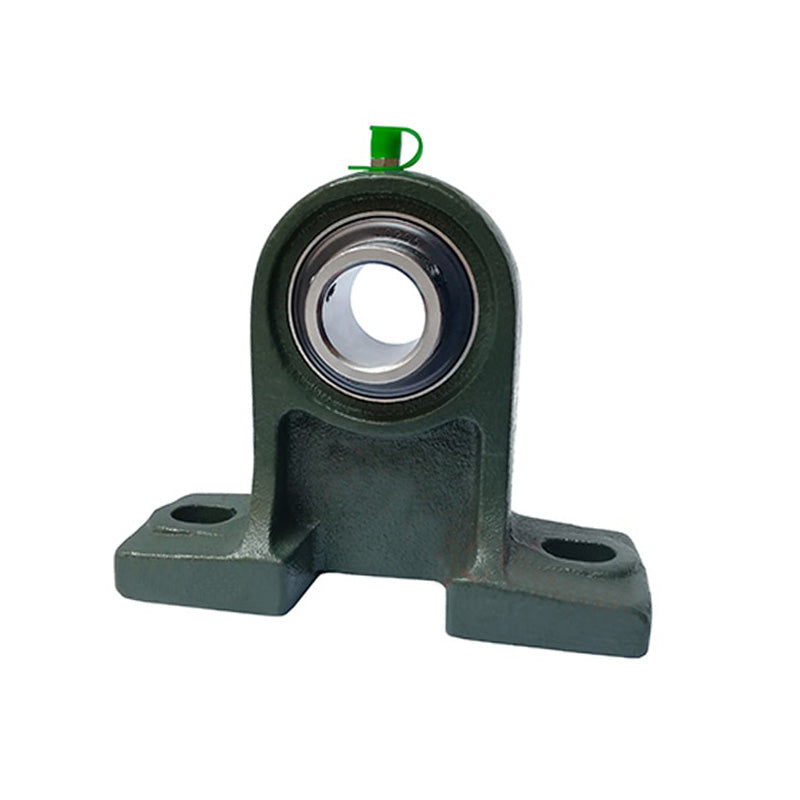

UCPH208-25 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-9/16 inch Insert
UCPH208-25 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-9/16 inch Insert
Regular price
CHF 38.06
ex VAT
Regular price
Sale price
CHF 38.06
ex VAT
In stock
Price Break
10+
CHF 33.87
19+
CHF 31.97
29+
CHF 31.59
39+
CHF 31.21
49+
CHF 30.83
74+
CHF 30.45
99+
CHF 28.55
199+
CHF 28.16
249+
CHF 27.78
499+
CHF 27.40
999+
CHF 26.64
Couldn't load pickup availability
Description
Description
UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Style:
- UCPH
- Bolt Hole Centres:
- 137.32mm = 5.406 (5-13/32) inch
Technical
Technical
| d | 1-9/16 inch |
|---|---|
| h | 3-15/16 inch |
| a | 7-1/64 inch |
| e | 5-13/32 inch |
| b | 2-3/4 inch |
| s1 | 43/64 inch |
| s2 | 53/64 inch |
| g | 3/4 inch |
| w | 5-29/32 inch |
| B | 1.937 inch |
| n | 0.748 inch |
| Bolt size | 1/2 inch |
| Bearing no | UC208-25 |
| Housing no | PH208 |
| Weight | 2.41 kg |
