SKU: UCPH210

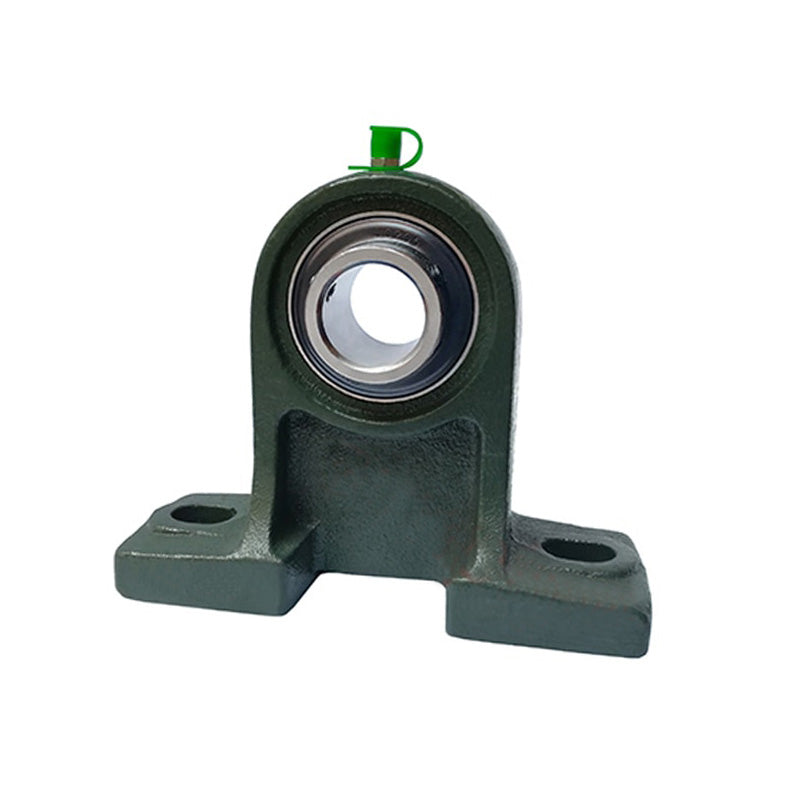

UCPH210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Insert
UCPH210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Insert
Regular price
CHF 51.79
ex VAT
Regular price
Sale price
CHF 51.79
ex VAT
In stock
Price Break
10+
CHF 46.09
19+
CHF 43.50
29+
CHF 42.99
39+
CHF 42.47
49+
CHF 41.95
74+
CHF 41.43
99+
CHF 38.84
199+
CHF 38.32
249+
CHF 37.81
499+
CHF 37.29
999+
CHF 36.25
Couldn't load pickup availability
Description
Description
UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCPH
- Bolt Hole Centres:
- 159mm
Technical
Technical
| d | 50mm |
|---|---|
| h | 110mm |
| a | 205mm |
| e | 159mm |
| b | 70mm |
| s1 | 20mm |
| s2 | 23mm |
| g | 21mm |
| w | 165mm |
| B | 51.6mm |
| n | 19mm |
| Bolt size | M16 |
| Bearing no | UC210 |
| Housing no | PH210 |
| Weight | 2.97 kg |
