SKU: UCPLE211CO-SNR

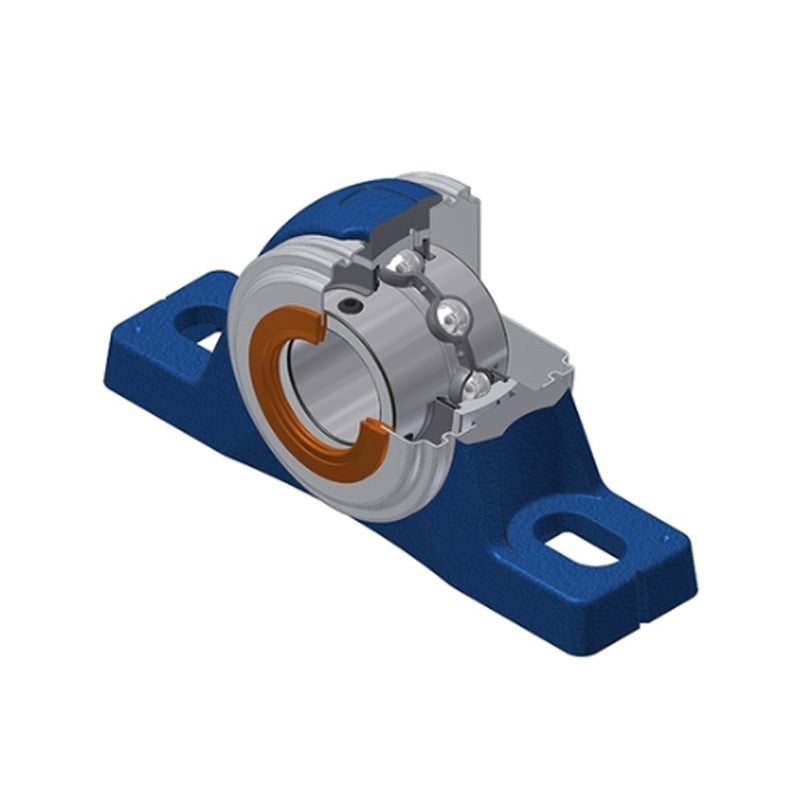

SNR UCPLE211CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCPLE211CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price CHF 99.00 ex VAT
Regular price Sale price CHF 99.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 87.74
4+ CHF 84.20
9+ CHF 82.43
19+ CHF 79.77
49+ CHF 77.99
99+ CHF 73.56
499+ CHF 62.04
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 55mm
A 60mm
A1 39.5mm
B 55.6mm
H 61.3mm
H1 23.2mm
H2 128mm
J 170.5mm
L 219.5mm
N 18mm
N1 26mm
S 22.2mm
Dz 110mm
Z 78.9mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.662 kg
