SKU: UCPLE212CC-SNR

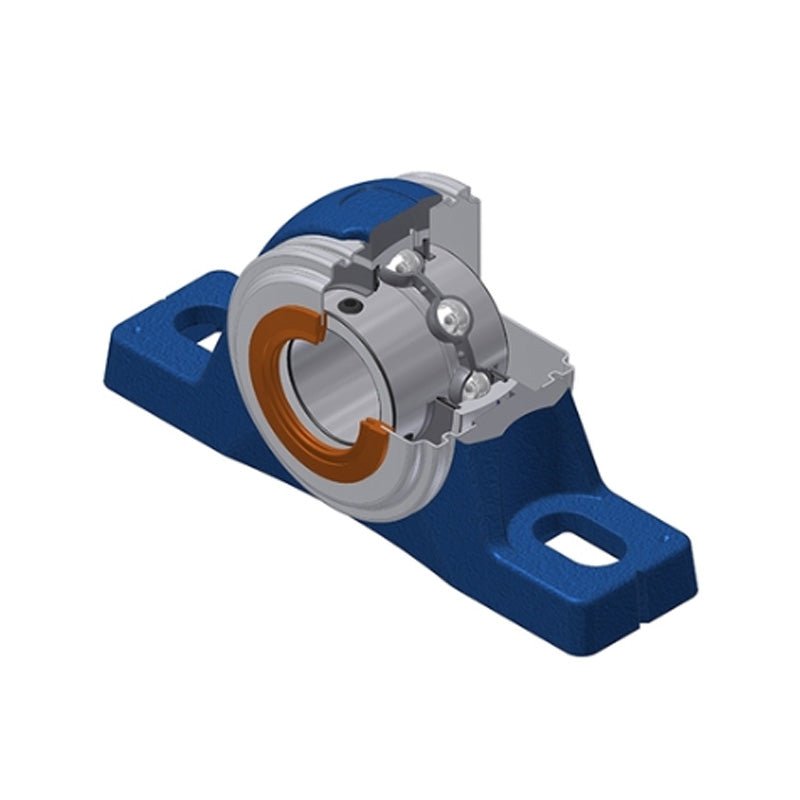

SNR UCPLE212CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCPLE212CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price CHF 174.00 ex VAT
Regular price Sale price CHF 174.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 153.49
4+ CHF 147.29
9+ CHF 144.19
19+ CHF 139.54
49+ CHF 136.44
99+ CHF 128.68
499+ CHF 108.53
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 60mm
A 79.4mm
A1 50.8mm
B 65.1mm
H 68.3mm
H1 28.6mm
H2 138.1mm
J 193.7mm
L 245mm
N 18mm
N1 29.1mm
S 25.4mm
Dz 120mm
Z 96.4mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 5.56 kg
