UCPX07-20 Imperial Two Bolt Cast Iron Pillow / Plummer Block Housing with 1-1/4 inch Bore Insert - Allow 2-3 Days
UCPX07-20 Imperial Two Bolt Cast Iron Pillow / Plummer Block Housing with 1-1/4 inch Bore Insert - Allow 2-3 Days
Regular price
CHF 50.00
ex VAT
Regular price
Sale price
CHF 50.00
ex VAT
In stock
Price Break
3+
CHF 43.86
4+
CHF 42.09
9+
CHF 41.20
19+
CHF 39.87
49+
CHF 38.98
99+
CHF 36.77
499+
CHF 31.01
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- UCPX
- Bolt Hole Centres:
- 144mm
Technical

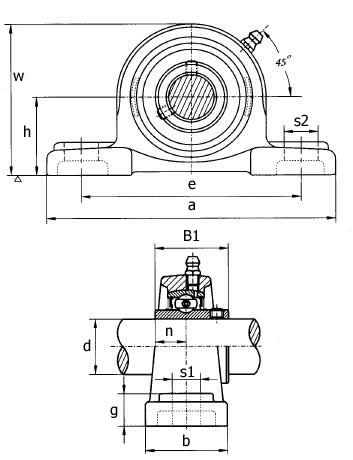

Technical
| d | 1-1/4 inch |
|---|---|
| h | 54mm |
| a | 203mm |
| e | 144mm |
| b | 57mm |
| s2 | 30mm |
| s1 | 17mm |
| g | 22mm |
| w | 105mm |
| B1 | 49.2mm |
| n | 19mm |
| Bolt Size | M14 |
| Weight | 2.7 kg |
| Dynamic load | 25560 kgf |
| Static load | 1810 kgf |
